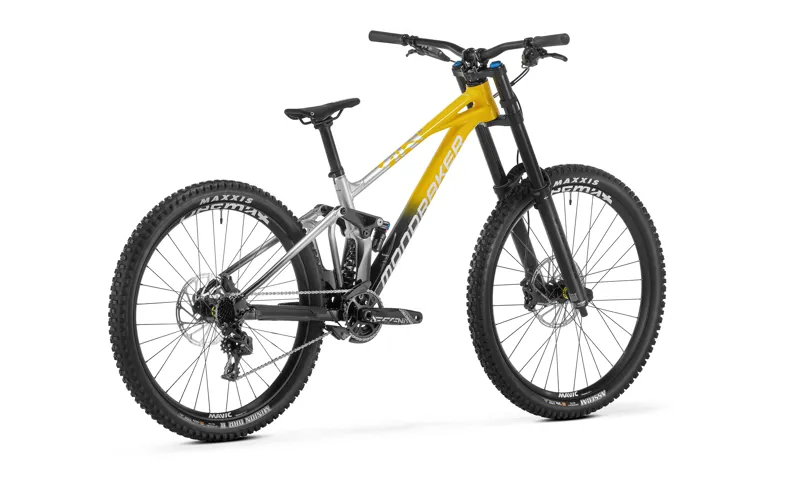

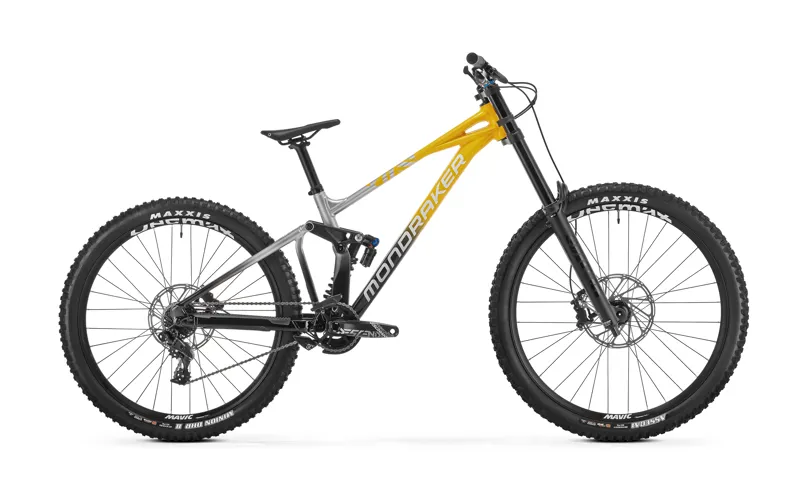

Mondraker SUMMUM R Mullet 2025 Dense Yellow

Frame

Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit

Sizes

S / M / L / XL MX

Rear shock

Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

CP104 compression, M rebound, Rezi BP101. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs

Fork

Fox 40 29 Float GRIP Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 52mm. Settings: 3-pos compression dial, air preload

Headset

Onoff ZS56/ZS56, 1-1/8", 1-1/8" steerer tube, 42x30x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 62mm

Stem

Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer

Handlebar

Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips

Onoff Beehive, 1lock-on, 135mm

Seatpost

Onoff S3 DH Alloy, diameter 31.6mm, length 300mm

Saddle

Ergon SM10 DH Black

Front brake

Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake

Sram DB8, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram DB8, tool reach adjust, lever pivot bushings

Rims

Mavic Deemax BikePark 29, 30mm internal width, 32 holes

Spokes

Mavic 32 steel flat spokes

Front hub

Mavic Boost 20x110mm, IS 6 bolts

Rear hub

Mavic 12x157mm, ID360 freewheel, sealed bearings, IS 6 bolts, HG freehub

Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Dissector 27''5x2.4 WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Crankset

Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5

Rings

34T, steel, X-SYNC

Bottom bracket

Sram DUB BSA, sealed bearings, 83mm

Chain

Sram PC1110 11s, Powerlock

Front derrailleur

e*Thirteen Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider

Rear derrailleur

Sram GX DH, 7s, medium cage

Shift levers

Sram trigger GX DH 7s, X-actuation 1:1

Cassette

Sram PG 720 11-25T, 7s

Derailleur hanger

Mondraker M068

Others

*Optional geometry kit: +-1º / +-2º headset cups

Weight

17,9 kg
