The FOXY CARBON R is the most economical of the carbon framed models, yet maintains exactly the same frame as that of the XR and RR CARBON. It comes equipped with Fox suspension, 160mm up front and 150mm at the rear. It’s equipped with SRAM’s NX Eagle 12-speed transmission, e*thirteen’s LG1 Plus Enduro wheels, SRAM’s G2 R 4-piston brakes and ONOFF components, the latter highlighting the Pija telescopic seatpost. The geometry change kit is optional on this model.
The FOXY CARBON R is the most economical of the carbon framed models, yet maintains exactly the same frame as that of the XR and RR CARBON. It comes equipped with Fox suspension, 160mm up front and 150mm at the rear. It’s equipped with SRAM’s NX Eagle 12-speed transmission, e*thirteen’s LG1 Plus Enduro wheels, SRAM’s G2 R 4-piston brakes and ONOFF components, the latter highlighting the Pija telescopic seatpost. The geometry change kit is optional on this model.
Mondraker

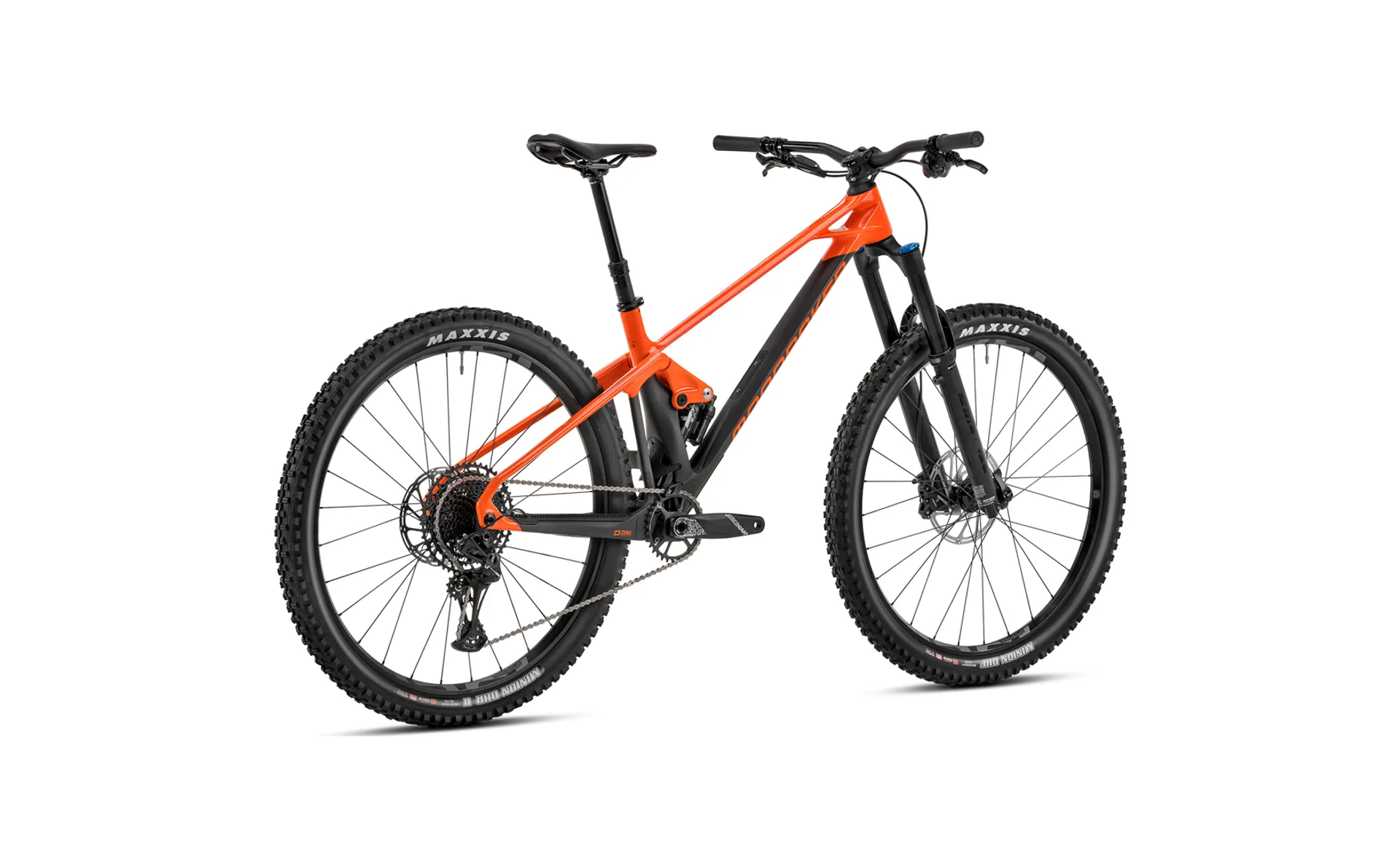

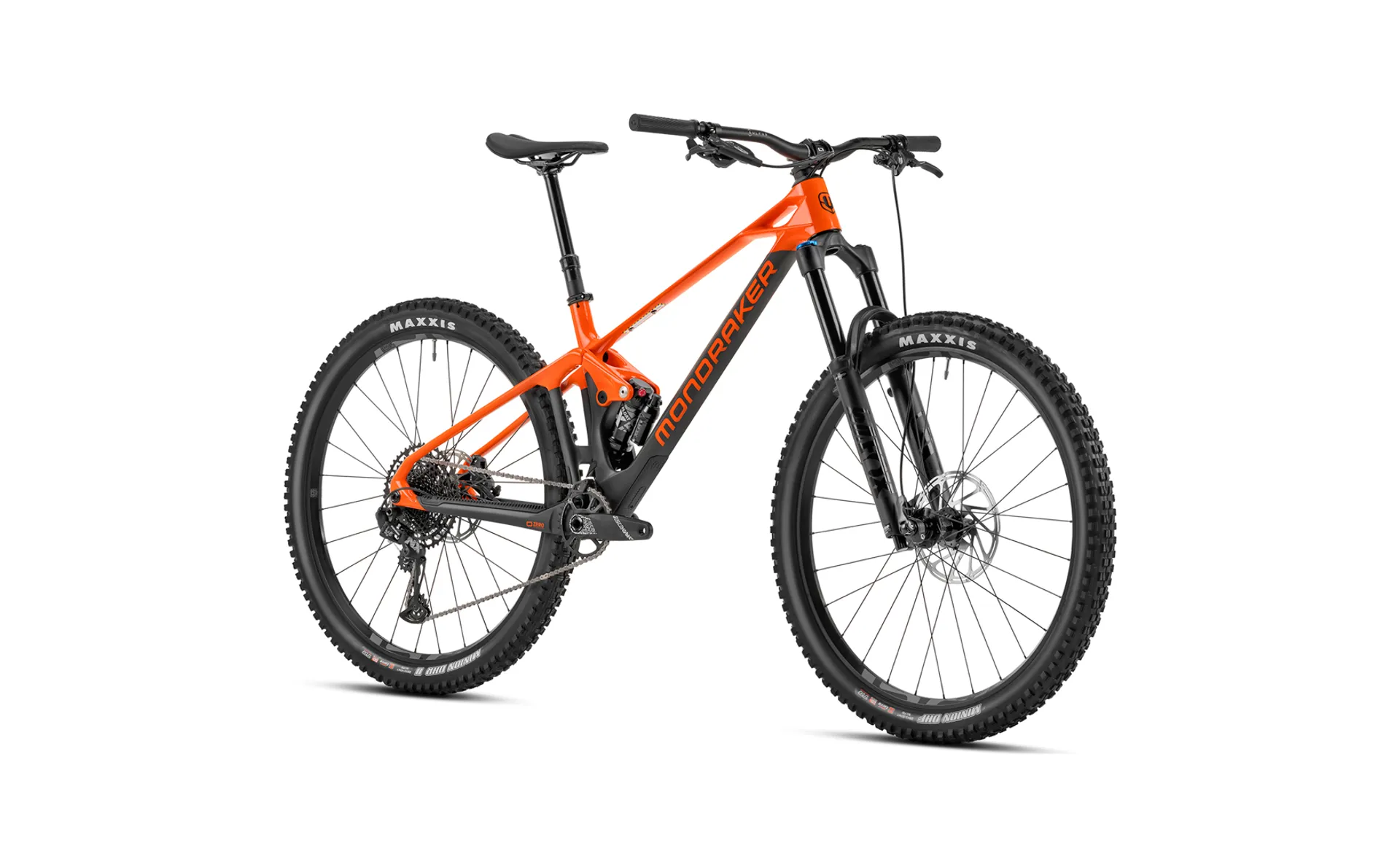

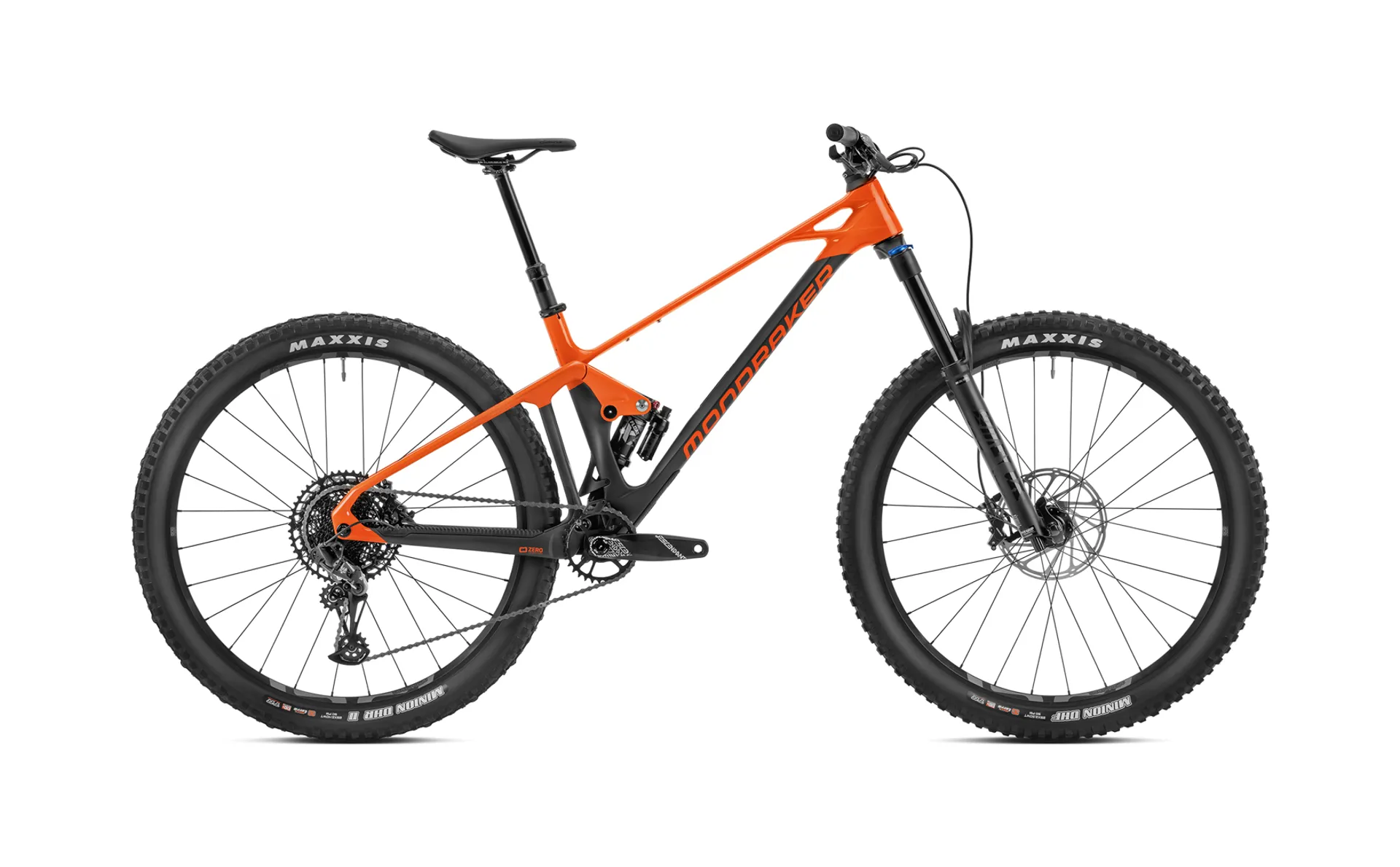

Mondraker Foxy Carbon R Ed1 Orange

£3,999.00 £6,400.00 38% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Mondraker Foxy Carbon R Ed1 Orange

Season:2023

Brand:Mondraker

Code:10.23UK11

Mondraker Foxy Carbon R, super sleek looking lightweight enduro bike, gloss orange it looks stunning.

Full bike specification

Frame

Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 500mm


Rear shock

Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

Light compression, light rebound, air volume spacer 0.6


Fork

Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload

Headset

Acros custom for 1-1/2" head tube, angular contact bearings40x52x7, Internal cable routing


Stem

ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore


Grips

ONOFF Desert, 1lock-on, 135mm

Seatpost

ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm


Saddle

SDG BEL-AIR 3.0, LPU foam, steel rails

Front brake

Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads


Rear brake

Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram G2 R, tool-free reach adjust


Rims

e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers


Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub


Front tire

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead


Crankset

Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

Rings

32T, steel, X-Sync 2


Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram NX Eagle, 12s, Powerlock


Rear derrailleur

Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger NX Eagle, 12s, X-Actuation 1:1


Cassette

Sram XG-1230, 11-50T, 12s
Derailleur hanger

Sram UDH

Weight

14,9 kg
