Perfect for riders who want a bike that offers the whole package at a reasonable price. The RAZE is the trail bike to offer you the most amazing performance in its category thanks to Mondraker’s exclusive technologies: ALLOY STEALTH EVO, FORWARD GEOMETRY and ZERO SUSPENSION SYSTEM, and all without breaking the bank. Along with the other models in the range, whether carbon or aluminium, the RAZE builds on that same philosophy of enjoying both the ups and the downs thanks to its abundant capabilities at both activities. With 150mm of travel up front and 130mm at the rear, you'll be amazed at how versatile and fun it is. It is truly a bike for everything. The definitive quiver killer.
Perfect for riders who want a bike that offers the whole package at a reasonable price. The RAZE is the trail bike to offer you the most amazing performance in its category thanks to Mondraker’s exclusive technologies: ALLOY STEALTH EVO, FORWARD GEOMETRY and ZERO SUSPENSION SYSTEM, and all without breaking the bank. Along with the other models in the range, whether carbon or aluminium, the RAZE builds on that same philosophy of enjoying both the ups and the downs thanks to its abundant capabilities at both activities. With 150mm of travel up front and 130mm at the rear, you'll be amazed at how versatile and fun it is. It is truly a bike for everything. The definitive quiver killer.
Mondraker

Mondraker RAZE ED1 Black White

£2,399.00 £2,999.00 20% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

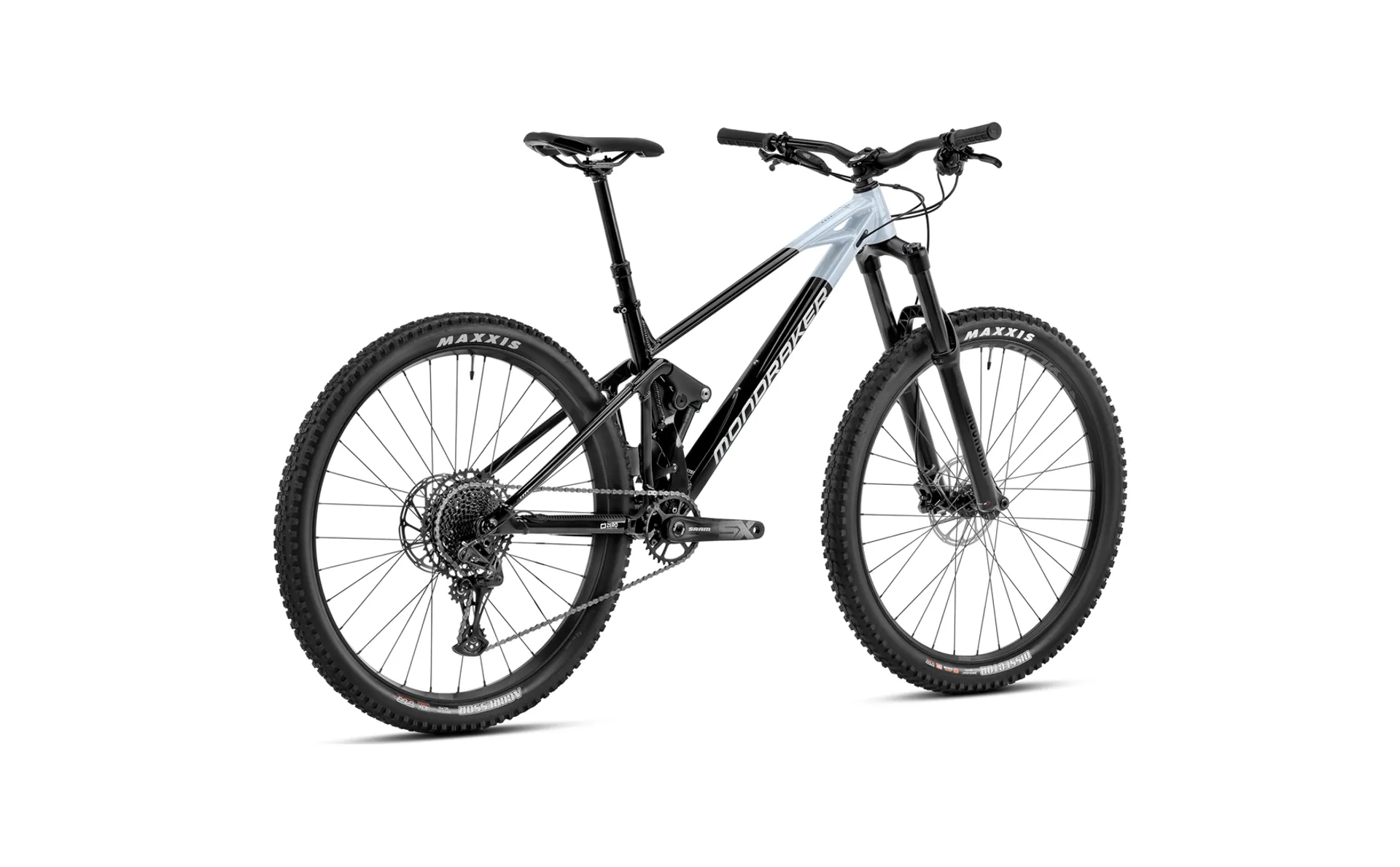

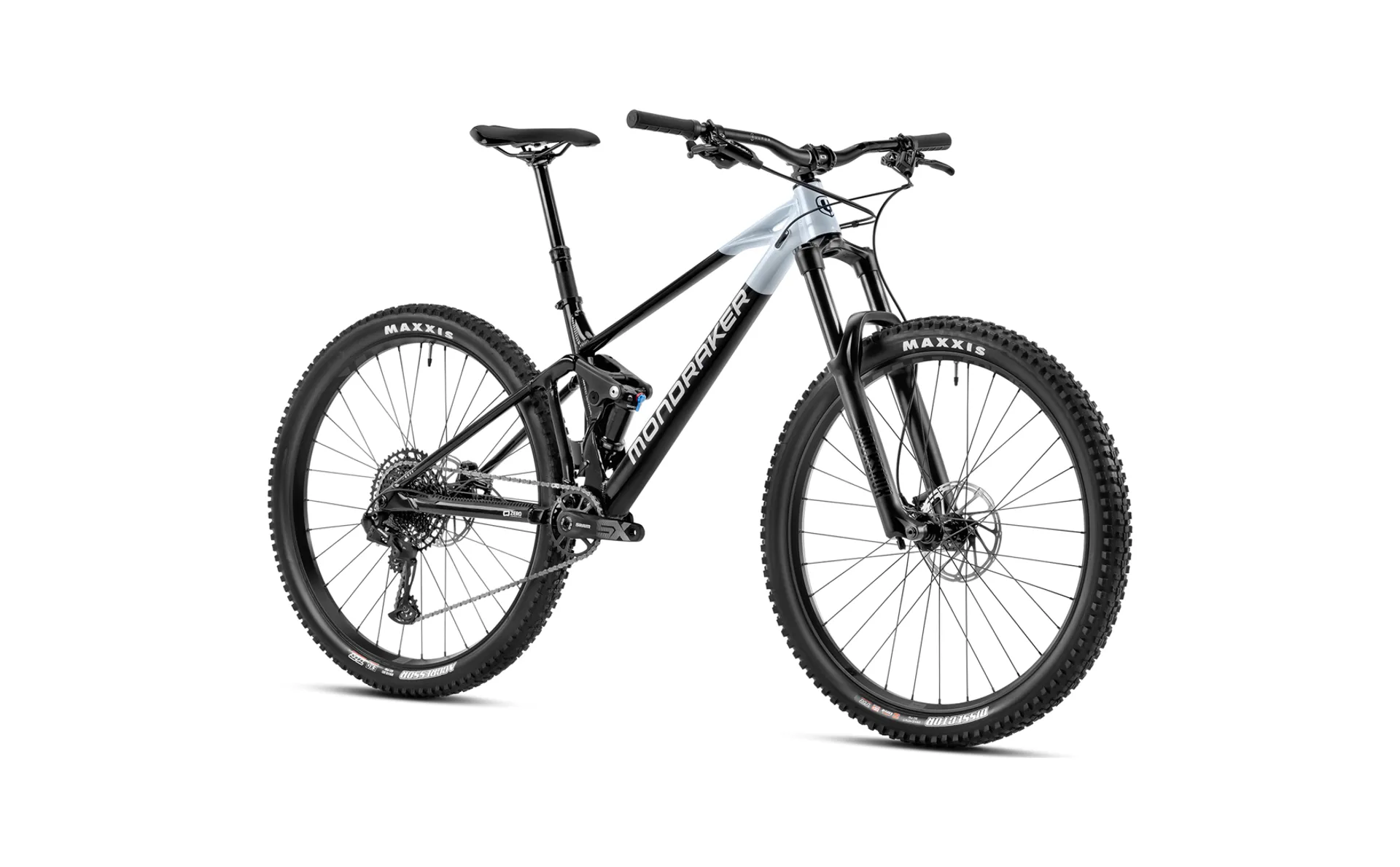

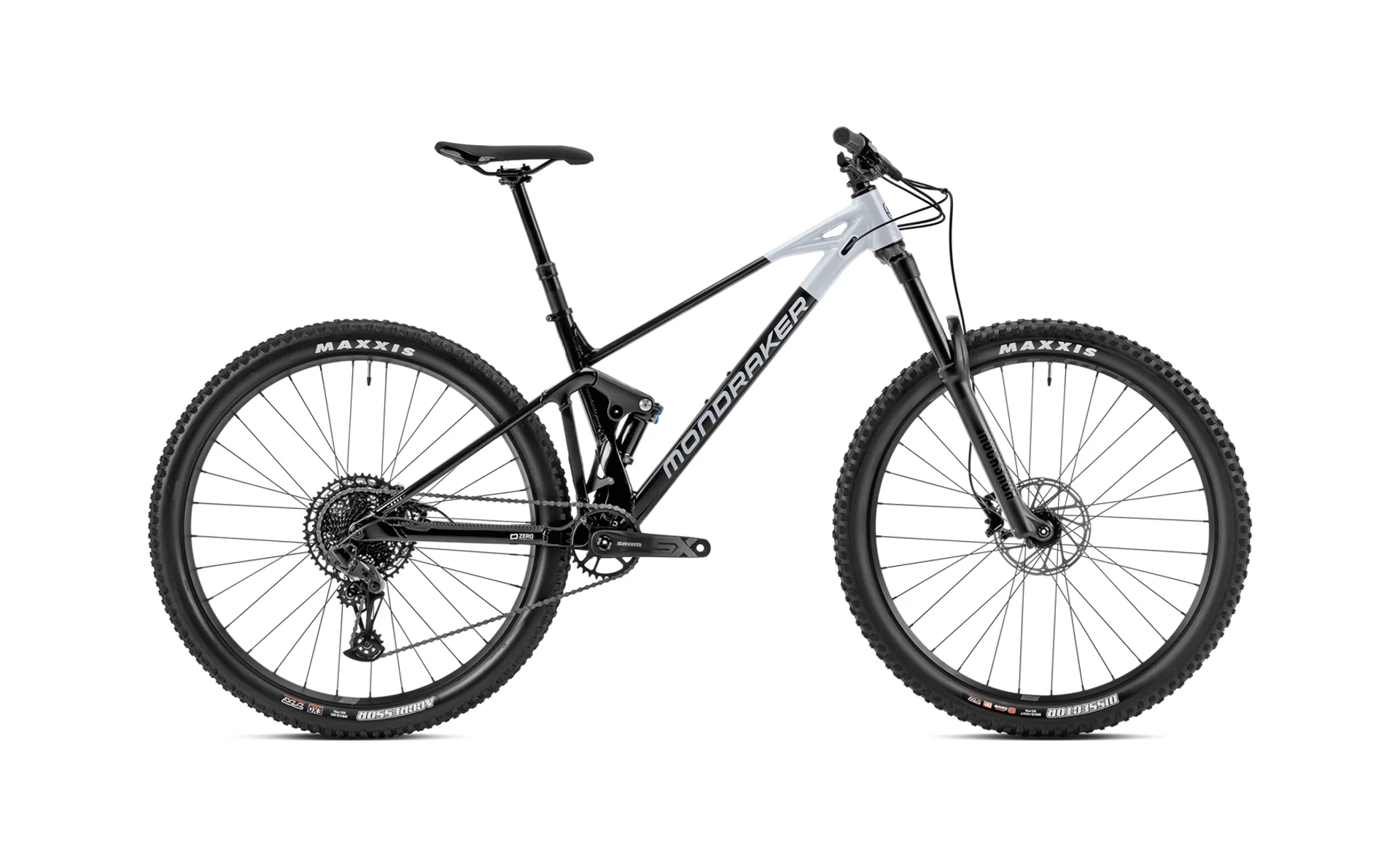

Mondraker RAZE ED1 Black White

Season:2023

Brand:Mondraker

Code:010.230BLKWH

Mondraker Raze, a fantastic entry level trail bike, with 130mm rear travel and 150mm upfront this is a more than capible trail bike.

Full bike specification

Frame

Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

Sizes

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

Rear shock

Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 25x8mm bottom bushings

Shock settings

Light compression, light rebound, air volume spacer 0.6

Fork

RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset

ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

ONOFF Twin, 1lock-on, 135mm

Seatpost

ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

Saddle

MDK series PU 2023

Front brake

Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake

Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

Rims

MDK-EP1 29, 30mm internal width, tubeless ready, 32 spokes

Spokes

CN round stainless steel

Front hub

Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

Rear hub

Formula DHT148 Boost 12x148mm, sealed bearings, IS 6 bolts

Front tire

Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire

Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

Crankset

Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm

Rings

32T, steel, X-Sync 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram SX Eagle, 12s, Powerlock

Rear derrailleur

Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Cassette

Sram PG-1210, 11-50T, 12s

Derailleur hanger

Sram UDH

Weight

15,9 kg
