Mondraker Raze RFor most people they need to be able to go both up as well as down. RAZE is a Trail model for riders who want it all, a sure bet yet spectacularly lightweight trail rocket MTB with 150mm of front wheel travel and 130mm at the rear.
Mondraker Raze RFor most people they need to be able to go both up as well as down. RAZE is a Trail model for riders who want it all, a sure bet yet spectacularly lightweight trail rocket MTB with 150mm of front wheel travel and 130mm at the rear.
Mondraker

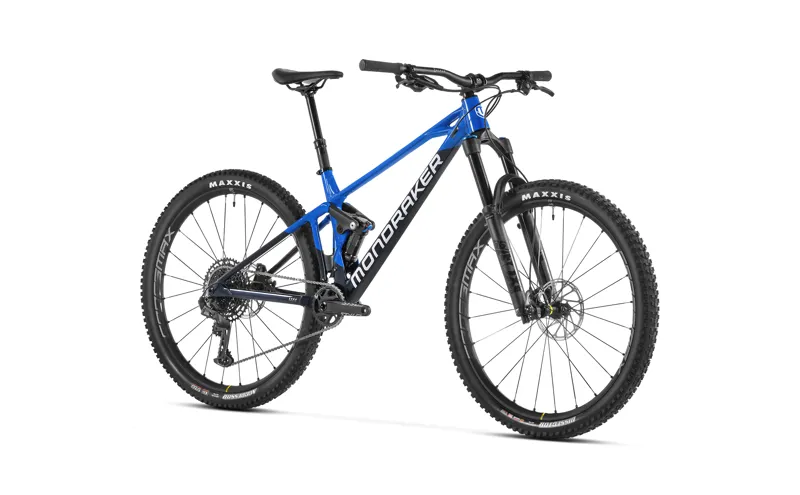

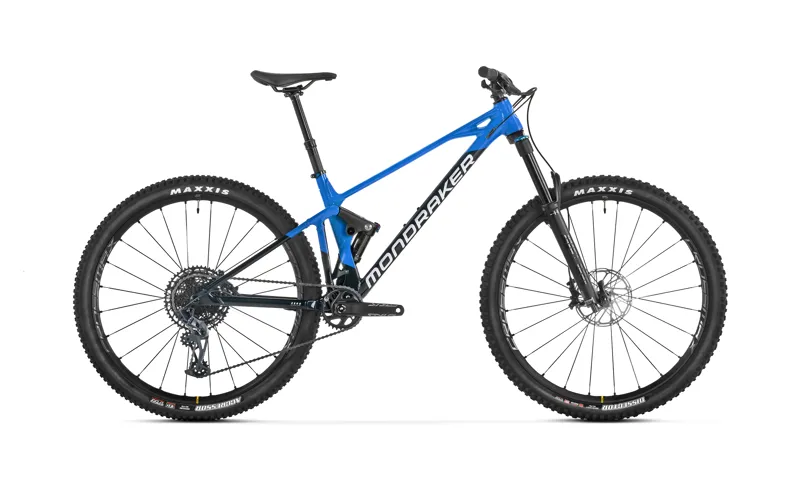

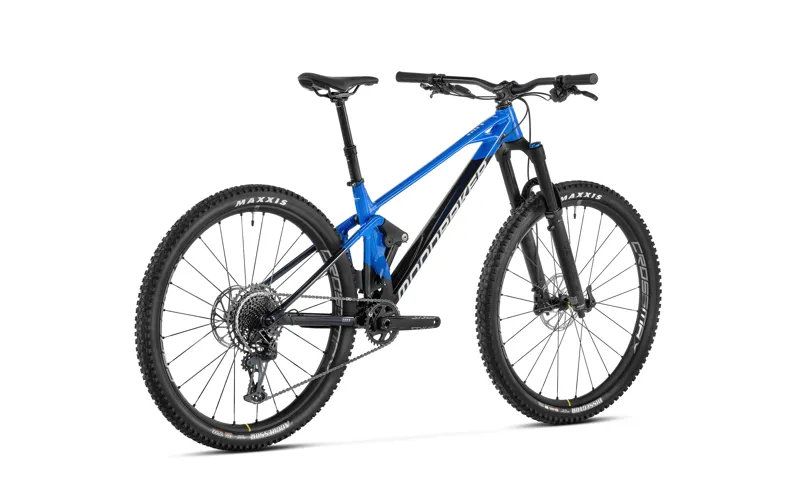

Mondraker RAZE R Midnight Blue

£2,999.00 £4,299.00 30% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Mondraker RAZE R Midnight Blue

Season:2024

Brand:Mondraker

Code:010.2409MBL

Mondraker Raze R Midnight Blue.

The RAZE R has the same features as the CARBON version, but with the frame made of aluminium. Its great climbing skills will surprise you when you go downhill by its absorption and maneuverability. Fun is undoubtedly one of the strengths of the RAZE R. With 150 mm of travel at the front and 130 mm at the rear, the RAZE R has a Fox 36 Float fork and a Fox Float shock absorber; SRAM GX/SRAM NX Eagle 12-speed transmission; Mavic Crossmax XL wheels; SRAM G brakes and ONOFF components.

Technical Information

Frame

Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

Sizes

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

Rear shock

Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x8mm bottom bushings

Shock settings

Light compression, light rebound, air volume spacer 0.6

Fork

Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

Onoff Twin, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

Saddle

Mondraker MDK Series, SRX, steel rail

Front brake

Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake

Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram G2 R, tool-free reach adjust, lever pivot bushings

Rims

Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes


Spokes

Mavic 24 straight-pull double butted spokes

Front hub

Mavic Infinity hub, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub

Front tire

Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire

Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

Crankset

Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52

Rings

32T, CNC-machined alloy, X-SYNC 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram NX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger NX Eagle, 12s, X-Actuation 1:1

Casette

Sram PG-1230, 11-50T, 12s

Derailleur hanger

Sram UDH

Weight

15,4 kg
