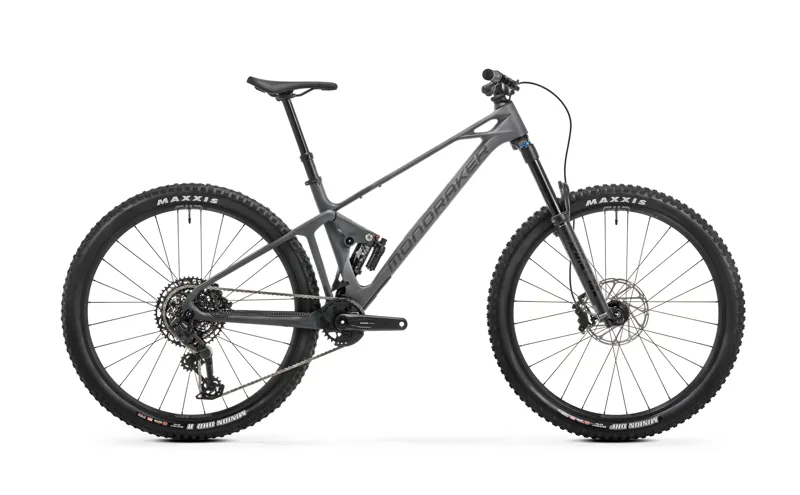

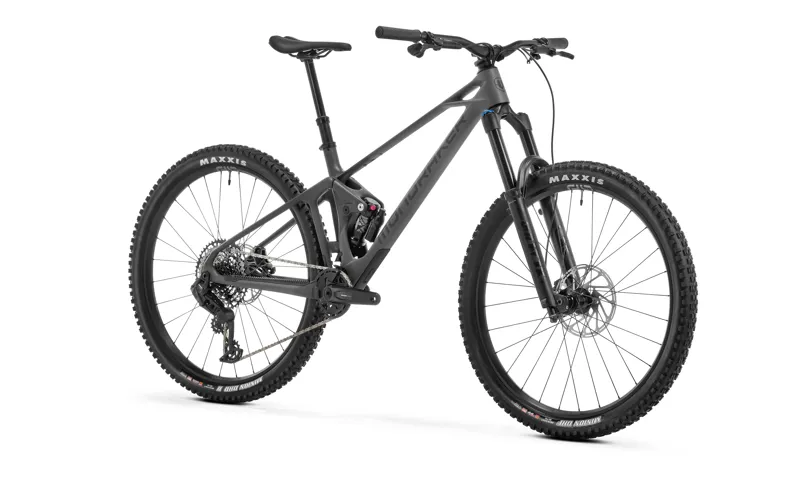

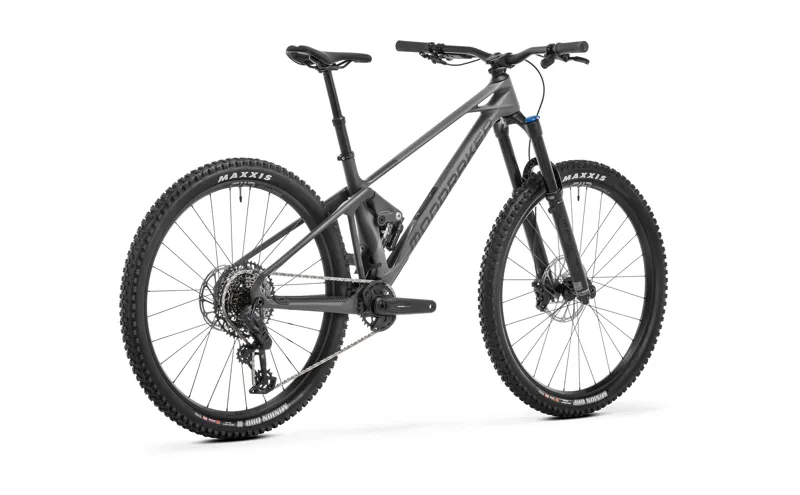

Mondraker FOXY CARBON R Nimbus Grey 2025

Mondraker Foxy Carbon R in Nimbus Grey


Full bike specification

Frame

Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

Sizes

S: 375mm / M: 415mm / L: 445mm / XL: 500mm

Rear shock

Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

Light compression, light rebound, air volume spacer 0.6

Fork

Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload

Headset

Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips

Onoff Forest, CNC lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)

Saddle

SDG BEL-AIR 3.0, LPU foam, steel rails

Front brake

Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake

Sram DB8 stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram DB8, tool reach adjust, lever pivot bushings

Rims

e*thirteen Grappler Core, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub

Front tire

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Crankset

Sram S1000 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, All sizes: 170mm,CL 55

Rings

32T, CNC-machined alloy, T-Type

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm, wide

Chain

Sram GX Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram S1000 Eagle AXS T-Type, 12s

Shift levers

Sram Eagle AXS Pod, 12s

Casette

Sram XS-1270, 10-52T, T-Type 12s

Weight

14,8 kg
