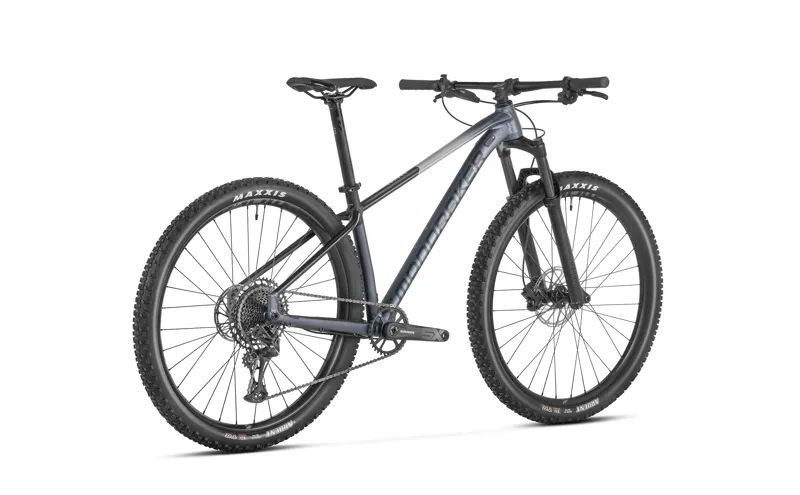

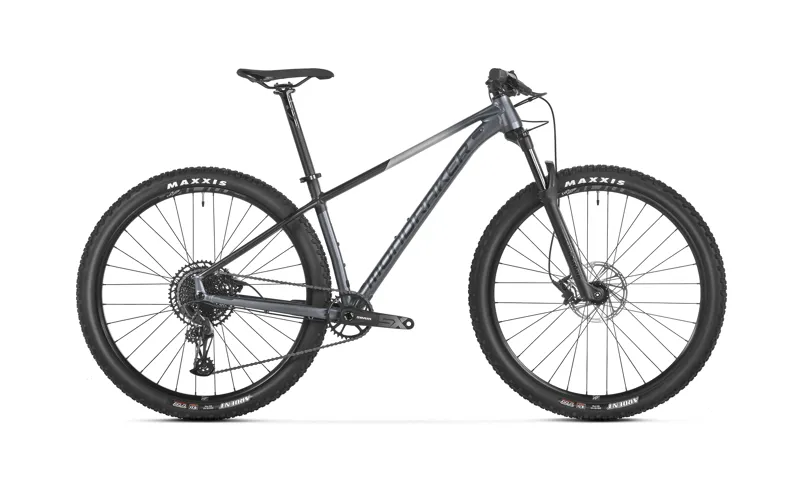

CHRONO DC
THE HARDTAIL THAT BRINGS THE TRAIL TO LIFE
Dirt, rocks, roots, mud, dust, water—interwoven elements that deliver raw, unfiltered emotions. Experience the thrill of the trail with every ride. Rediscover your love for mountain biking with our hardtail, built to reconnect you with the pure essence of the ride.
Bike specification
CHRONO DC
THE HARDTAIL THAT BRINGS THE TRAIL TO LIFE
Frame:
Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle
Sizes:
S: 395mm | M: 430mm | L: 470mm | XL: 520mm
Fork:
RockShox Judy Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 51mm offset
Settings: PopLoc 2 pos remote compression (open/lock), rebound, air preload
Fork Remote:
RockShox PopLoc
Headset:
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings
Top: 41x30.2x7x45ºx45º | Bottom: 51.9x40x8x45ºx45º
Stem:
Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º
S size: 50mm | M size: 50mm | L size: 60mm | XL size: 70mm
Handlebar:
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips:
Onoff Twin, 1 lock-on, 135mm
Seatpost:
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length: 400mm
Saddle:
Mondraker XC Series, steel rail
Front Brake:
Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear Brake:
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Lever:
Sram Level, tooled reach adjust, lever pivot bushings
Rims:
MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes:
CN round stainless steel
Front Hub:
Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts
Rear Hub:
Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub
Front Tire:
Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Rear Tire:
Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Crankset:
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring
S size: 170mm | M size: 175mm | L size: 175mm | XL size: 175mm
CL 52
Rings:
34T, steel, X-Sync 2
Bottom Bracket:
Sram DUB BSA, sealed bearings, 73mm
Chain:
Sram SX Eagle, 12s, Powerlock
Rear Derailleur:
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift Levers:
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette:
Sram PG-1210, 11-50T, 12s
Derailleur Hanger:
Mondraker M068
Weight:
13.6 kg
