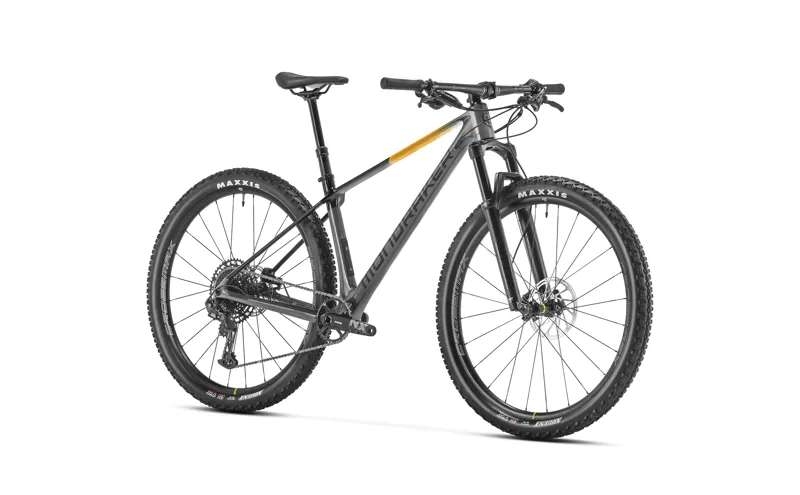

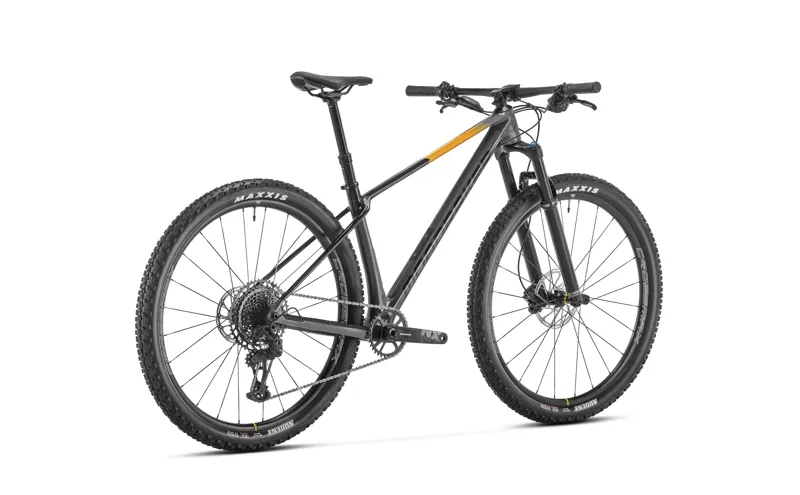

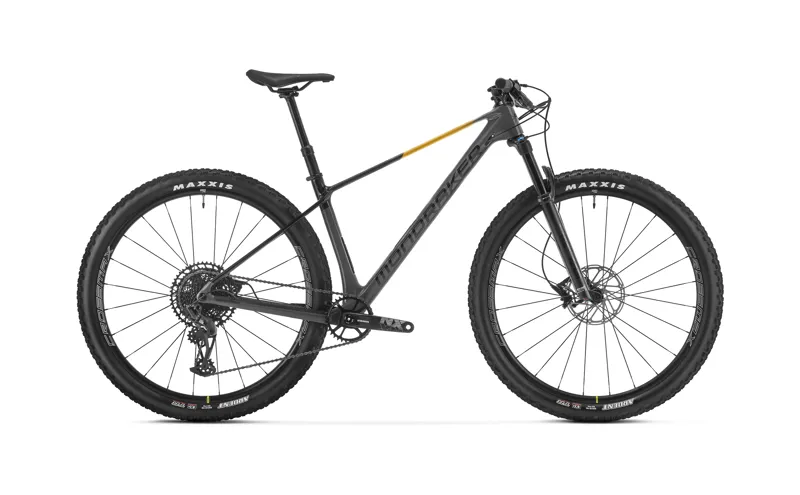

The CHRONO CARBON DC R
This mid-range model features a Fox 32 29 Float GRIP EVOL Rhythm fork with remote lock-out, SRAM GX Eagle chainset, SRAM Level T brakes, and an ONOFF Pija dropper post offering 120mm to 170mm of travel, depending on the frame size. It’s equipped with Maxxis Ardent 29x2.4” EXO tyres. Available in the striking ‘Nimbus Grey / Black / Yellow’ colorway.
Bike specification
Frame
Chrono 29 Stealth full carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible.
Sizes
S: 395mm | M: 430mm | L: 470mm | XL: 520mm
Fork
Fox 32 29 Float GRIP EVOL Rhythm, 120mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2-position Push-to-unlock, low-speed rebound, air preload.
Fork Remote
Fox single pull.
Headset
Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 51.8x40 45°x45°, bottom 51.8x40 36°x45°.
Stem
MDK, 6061 T6 alloy, 31.8mm bar bore, rise: +/-5º, length:
S: 50mm
M: 50mm
L: 60mm
XL: 70mm
Handlebar
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm bar bore.
Grips
Onoff Twin, 1 lock-on, 135mm.
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, universal lever.
S: 405x95-125mm
M: 458x120-150mm
L: 498x140-170mm
XL: 498x140-170mm
Saddle
Mondraker MDK Series, SRX, steel rail.
Front Brake
Sram Level T, 2-piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad.
Rear Brake
Sram Level T, 2-piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad.
Brake Lever
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings.
Rims
Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes.
Spokes
Mavic straight-pull double butted, contactless lacing.
Front Hub
Mavic, Boost 15x110mm, IS 6 bolts.
Rear Hub
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub.
Front Tire
Maxxis Ardent 29x2.40, dual compound, EXO, tubeless ready, 60TPI, folding bead.
Rear Tire
Maxxis Ardent 29x2.40, dual compound, EXO, tubeless ready, 60TPI, folding bead.
Crankset
Sram NX Eagle, 12s, Boost, DUB axle, direct mount chainring.
S: 170mm
M: 175mm
L: 175mm
XL: 175mm
CL 55.
Chainring
34T, steel, X-SYNC 2.
Bottom Bracket
Sram DUB BSA, sealed bearings, 73mm.
Chain
Sram SX Eagle, 12s, Powerlock.
Rear Derailleur
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1.
Shift Levers
Sram Trigger NX Eagle, 12s, X-Actuation 1:1.
Cassette
Sram PG-1230, 11-50T, 12s.
Derailleur Hanger
Sram UDH.
Weight
12.1 kg.
