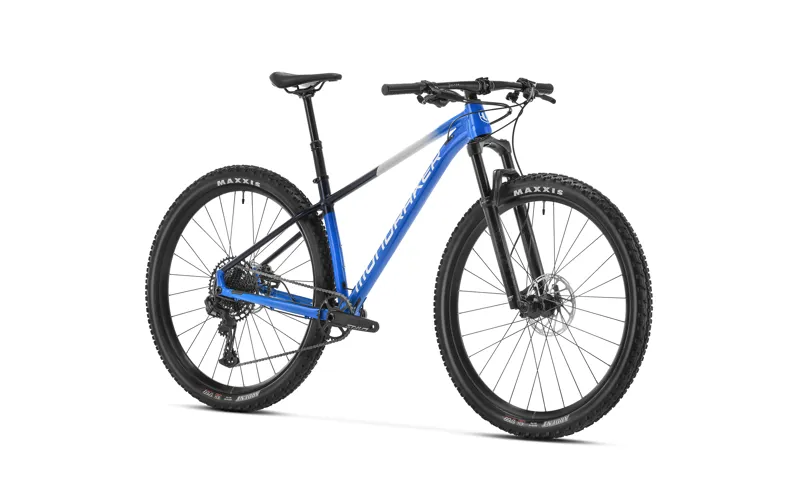

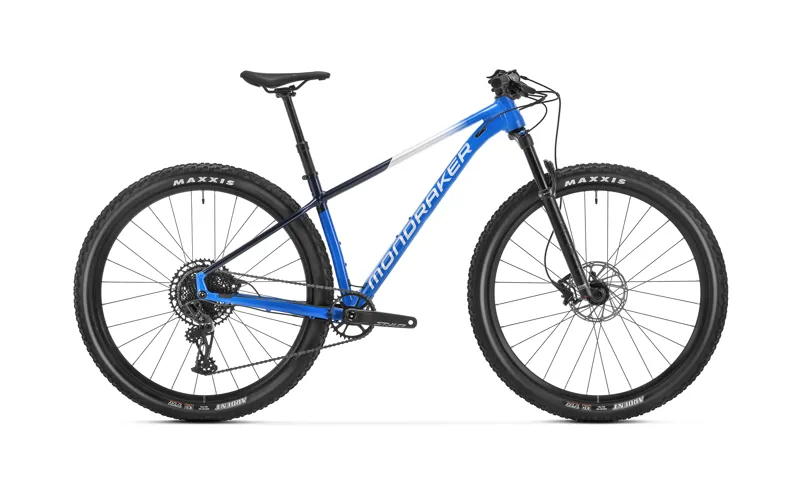

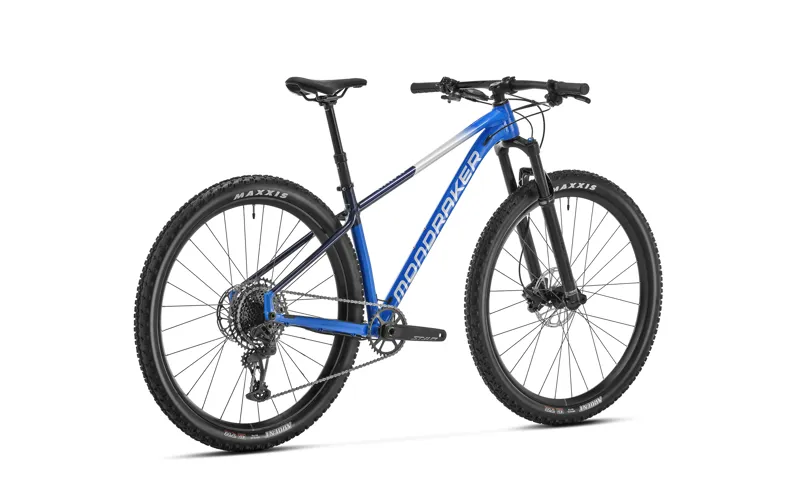

CHRONO DC
THE HARDTAIL THAT BRINGS THE TRAIL TO LIFE
Dirt, rocks, roots, mud, dust, water—interwoven elements that deliver raw, unfiltered emotions. Feel the thrill of the trail with every ride. Rediscover your passion for mountain biking with our hardtail, designed to reconnect you with the essence of the ride.
Bike specification
Frame
Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design.
Sizes
S: 395mm | M: 430mm | L: 470mm | XL: 520mm
Fork
Fox 32 29 Float GRIP Rhythm, 120mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2-position Push-unlock, low-speed rebound, air preload.
Fork Remote
Fox single pull.
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º.
Stem
Onoff Sulfur, 6061 T6 alloy, 31.8mm bar bore, rise: +/-7º, length:
S: 50mm
M: 50mm
L: 60mm
XL: 70mm
Handlebar
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm bar bore.
Grips
Onoff Twin, 1 lock-on, 135mm.
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X remote lever.
S: 405x95-125mm
M: 405x95-125mm
L: 458x120-150mm
XL: 458x120-150mm
Saddle
Mondraker MDK Series, SRX, steel rail.
Front Brake
Sram Level, 2-piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad.
Rear Brake
Sram Level, 2-piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad.
Brake Lever
Sram Level, tooled reach adjust, lever pivot bushings.
Rims
Mavic CrossRide 29, 30mm internal width, sleeved rim, hookless, tubeless ready, 28 spokes.
Spokes
Mavic J-bend steel round spokes.
Front Hub
Mavic, Boost 15x110mm, IS 6 bolts.
Rear Hub
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub.
Front Tire
Maxxis Ardent 29x2.40, dual compound, EXO, tubeless ready, 60TPI, folding bead.
Rear Tire
Maxxis Ardent 29x2.40, dual compound, EXO, tubeless ready, 60TPI, folding bead.
Crankset
Sram Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, direct mount chainring.
S: 170mm
M: 175mm
L: 175mm
XL: 175mm
CL 52.
Chainring
34T, steel, X-SYNC 2.
Bottom Bracket
Sram DUB BSA, sealed bearings, 73mm.
Chain
Sram SX Eagle, 12s, Powerlock.
Rear Derailleur
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1.
Shift Levers
Sram Trigger SX Eagle, 12s, X-Actuation 1:1.
Cassette
Sram PG-1210, 11-50T, 12s.
Derailleur Hanger
Mondraker M068.
Weight
13.2 kg.
