FUN WITH THE PLAY!
Just like the Trick, the Play has inherited the aesthetics and the performance of our adults’ bikes while throwing open the doors ona world of emotions and opportunities you only get on an ebike.We take our mountain biking very seriously, and any ebike worth its salt, regardless of whether it’s for kids or adults, needs power and range and perhaps most of all it must instil confidence. That’s what we kept in mind while designing the Play.
FUN WITH THE PLAY!
Just like the Trick, the Play has inherited the aesthetics and the performance of our adults’ bikes while throwing open the doors ona world of emotions and opportunities you only get on an ebike.We take our mountain biking very seriously, and any ebike worth its salt, regardless of whether it’s for kids or adults, needs power and range and perhaps most of all it must instil confidence. That’s what we kept in mind while designing the Play.
Mondraker

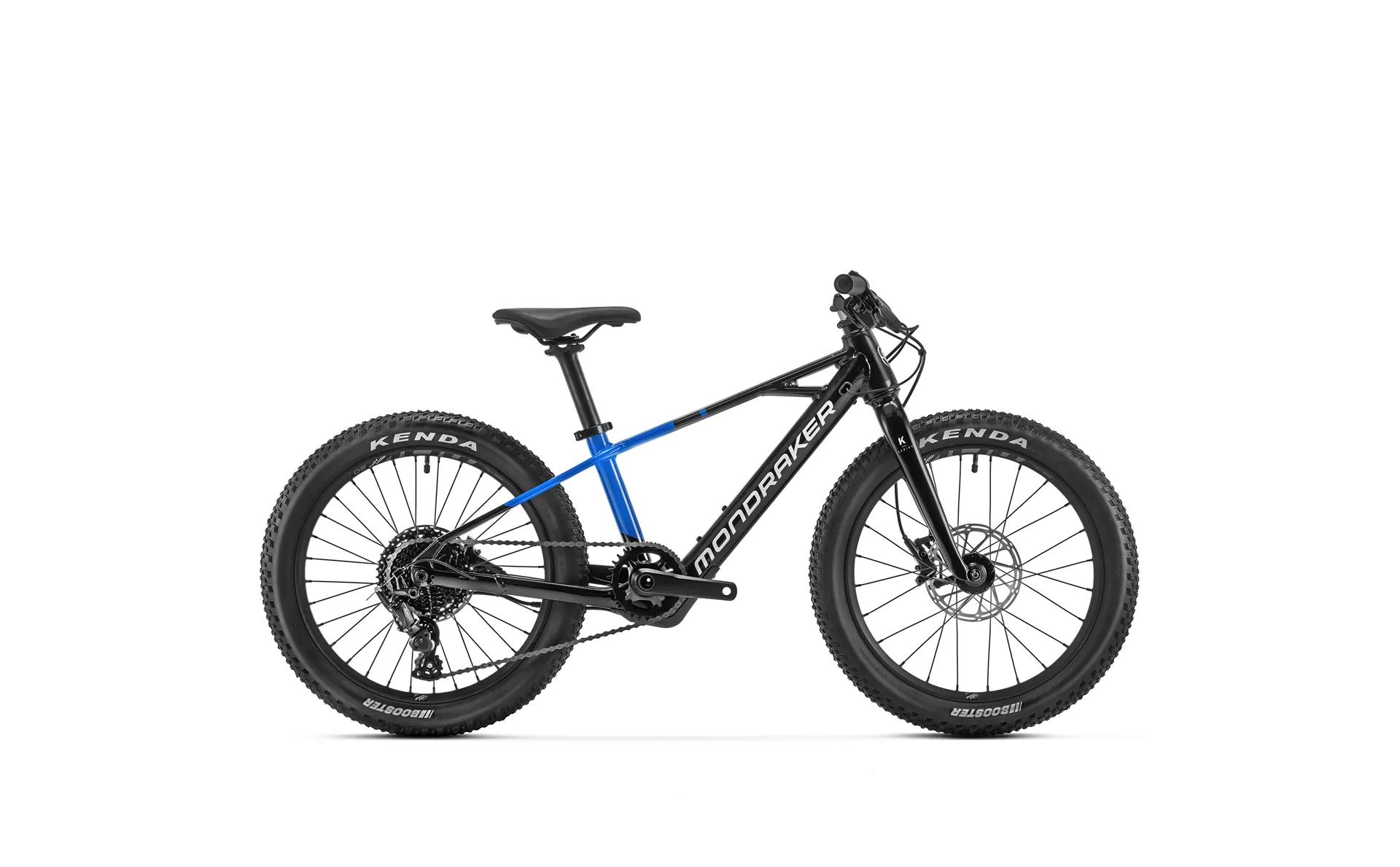

Mondraker PLAY 20 Black blue

£1,999.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Mondraker PLAY 20 Black blue

Season:2024

Brand:Mondraker

Code:010.24237

Detailed description

  • Frame

    Play 20 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible

    Sizes

    One size: 260mm

    Fork

    MDK 20 Kid, Rigid alloy Stealth stanchions, Post Mount disc brake mount

    Headset

    Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

    Stem

    Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

    Handlebar

    MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9º backsweep, 5º upsweep, 31.8mm barbore

    Grips

    Onoff Twin, 1lock-on

    Seatpost

    MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 250mm

    Saddle

    SDG Fly Jr

    Front brake

    Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

    Rear brake

    Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

    Brake lever

    Sram Level, tooled reach adjust, lever pivot bushings

    Rims

    MDK-HP1 20 TLR, 25mm internal width, tubeless ready, 32 spokes

    Spokes

    CN round stainless steel

    Front hub

    K8QF, 9x100mm, cup & cone ball bearings, IS 6 bolts

  • Rear hub

    Mahle-Ebikemotion X-35, HG freehub

    Front tire

    Kenda Booster 20x2.4 single compound 30TPI, wire bead

    Rear tire

    Kenda Booster 20x2.4 single compound 30TPI, wire bead

    Crankset

    Samox DM 28T steel, 114mm

    Rings

    28T, steel

    Bottom bracket

    BSA, 73mm

    Chain

    Sram PC951 9s, Powerlock

    Rear derrailleur

    Microshift Advent, M6195S super short cage

    Shift levers

    Microshift Advent SL M6195R, 9s

    Casette

    Microshift Advent 11-38T, 9s

    Derailleur hanger

    Mondraker M077

    Weight

    13,1 kg

    Display

    Mahle-Ebikemotion

    Motor

    Mahle-Ebikemotion X-35

    Battery

    Mahle-Ebikemotion Internal 250Wh
