Haibike Allmtn 3 full suspension electric mountain bike.Looking for a robust full suspension emtb for taking on any terrain? Our new ALLMTN 3 is the perfect all-rounder for you: With 160mm suspension travel front and rear, powerful 4-piston Shimano disc brakes and a robust Yamaha PW-X3 drive.
Haibike Allmtn 3 full suspension electric mountain bike.Looking for a robust full suspension emtb for taking on any terrain? Our new ALLMTN 3 is the perfect all-rounder for you: With 160mm suspension travel front and rear, powerful 4-piston Shimano disc brakes and a robust Yamaha PW-X3 drive.
Haibike

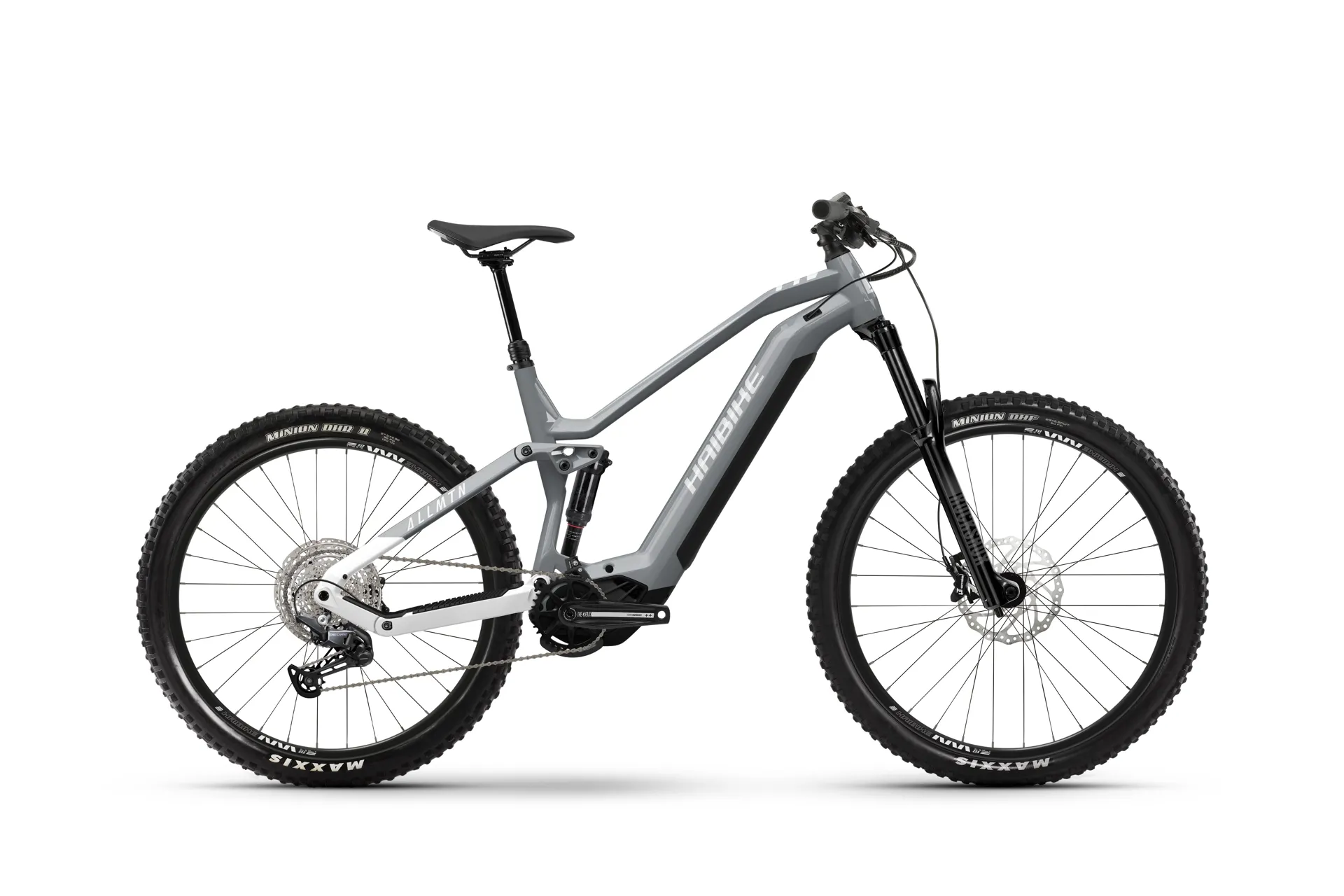

Haibike Allmtn 3 Mountain Bike In Silver

£3,599.00 £4,599.00 22% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Haibike Allmtn 3 Mountain Bike In Silver

Season:2024

Brand:Haibike

Code:HMBR1SIL

Are you looking for a robust eFully that takes on any terrain?

Then our new ALLMTN 3 is the perfect all-rounder for you: With 160 mm travel front and rear, burly 4-piston disc brakes from Shimano and the powerful Yamaha PW-X3 drive, this eMTB takes you smoothly over all trails. Thanks to the mixed wheel sizes of 29" front / 27.5" rear, you will always enjoy perfect traction and master even the steepest uphills and downhills without a problem.

Features:

  • Aluminium, through axle M12 (1.00) x148mm, disc brake Post Mount frameset
  • RockShox 35 Gold RL, air, aluminum shaft 1 1/8" - 1 1/2" tapered, thru-axle Boost fork
  • RockShox Deluxe Select, air shock
  • Yamaha PW-X3, 250W, 85Nm, 25km/h motor
  • InTube 720Wh battery
  • Yamaha Side Switch remote
  • Shimano Deore gearing
  • Shimano MT400-B font hub
Technical Information
  • ENGINE
    Yamaha, PW-X3, 250W, 85 Nm
  • DISPLAY
    Yamaha, Side Switch, 1.7" LCD, 7 functions
  • BATTERY
    InTube, 720 Wh
  • FORK
    RockShox, 35 Gold RL, Air, travel= 160 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
  • DAMPER
    RockShox, Deluxe select, Air, Trunnion Mount
  • CRANK ARM
    Haibike Components, The Crank ++, Aluminium
  • BRAKE (FRONT)
    Shimano, MT420, 4-piston disc brake
  • BRAKE (REAR)
    Shimano, MT420, 4-piston disc brake
  • TUBE
    Presta valve
  • RIM
    WTB, ST i30 TCS, Double Wall
  • CLAMPING RING
    Internal hexagon, 38 mm
  • REAR DERAILLEUR
    Shimano, Deore M6100
  • SHIFT LEVER
    Shimano, Deore M6100, Trigger switch
  • BOTTOM BRACKET
    integrated in the motor
  • SPROCKET
    Shimano, M6100, 10 - 51 teeth
  • CHAIN
    Shimano, CN-M6100
  • CHAINRING
    Steel, 36 teeth
  • CHAIN GUIDE
    Nylon directmount
  • BRAKE LEVER
    Shimano, MT401, Aluminium,
  • BRAKE DISC (FRONT)
    Shimano, RT EM300L, 203 mm
  • BRAKE DISC (REAR)
    Shimano, RT30-L, 203 mm
  • TYRE
    Maxxis, Minion DHF II, 63-622, 29" x 2.5"
  • FRONT WHEEL HUB
    Shimano, MT400-B, Centerlock
  • REAR WHEEL HUB
    Shimano, MT410, Centerlock
  • SPOKES
    Sapim, Race, Black
  • HANDLEBAR
    Haibike Components, TheBar +++, 780 mm
  • STEM
    Haibike Components, TheStem ++, A-head, 31.8 mm
  • HEADSET
    Acros, BlockLock, Aluminium
  • SADDLE
    Selle Royal, Vivo
  • SEAT POST
    Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
  • PEDALS
    Freeridepedal, Aluminium, with Reflector
  • PERMITTED TOTAL WEIGHT
    120.0 kg
  • GEAR SHIFT
    Shimano, Nexus
  • TYRE (REAR)
    Maxxis, Minion DHR II, 66-584, 27.5" x 2.6"
  • RIM (REAR)
    WTB, ST i35 TCS, double wall
