The MondrakerNEAT is our vision of what the Light e-MTB category should be, while bringing the character which defines all Mondraker bikes into the mix.NEAT is the product of our desire to blur the line between traditional MTBs and full power eMTBs, creating a bike whichtruly offers the best of both worlds. A 150mm enduro bike with a 160mm fork, the lower limit travel for maximum performance. Light, butwithout sacrificing anything in the process.
The MondrakerNEAT is our vision of what the Light e-MTB category should be, while bringing the character which defines all Mondraker bikes into the mix.NEAT is the product of our desire to blur the line between traditional MTBs and full power eMTBs, creating a bike whichtruly offers the best of both worlds. A 150mm enduro bike with a 160mm fork, the lower limit travel for maximum performance. Light, butwithout sacrificing anything in the process.
Mondraker

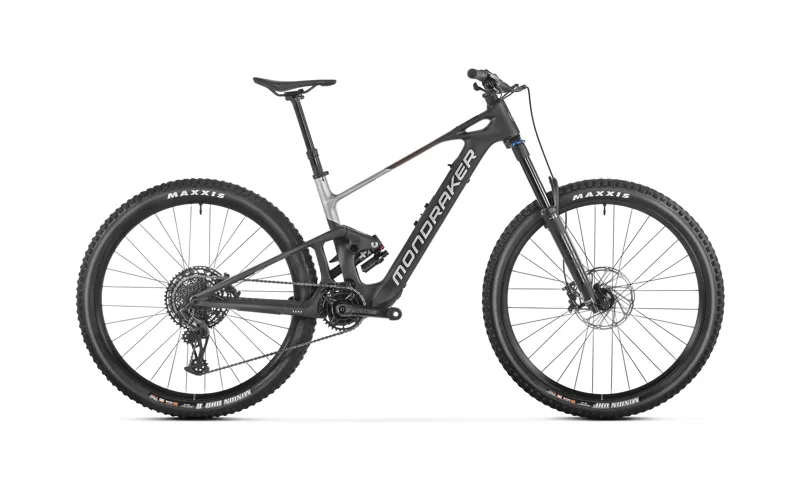

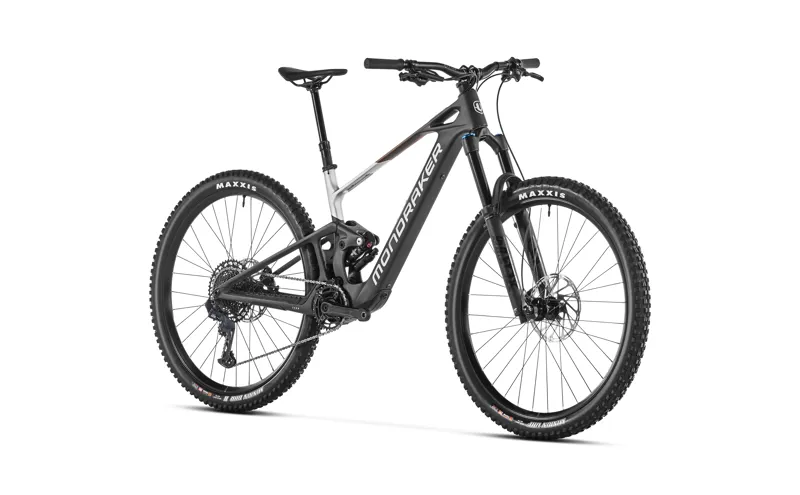

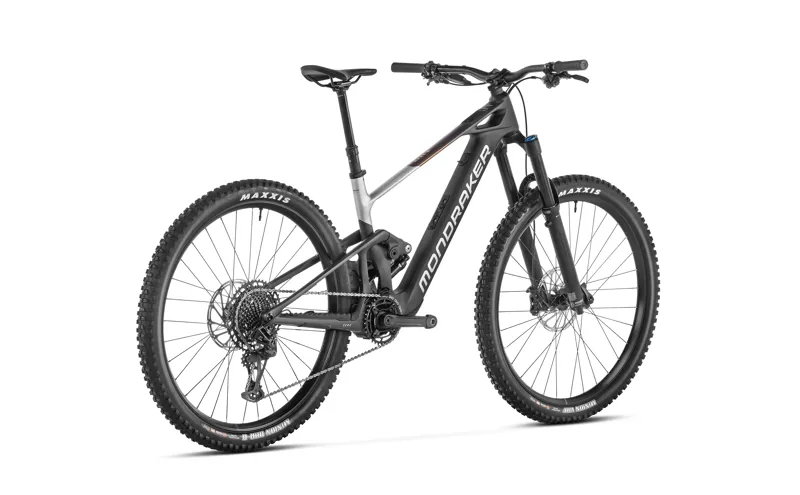

Mondraker NEAT R Carbon

£4,799.00 £6,799.00 29% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Mondraker NEAT R Carbon

Season:2024

Brand:Mondraker

Code:010.2424C

The Mondraker NEAT is our vision of what the Light e-MTB category should be, while bringing the character which defines all Mondraker bikes into the mix.

Bike Specification

Frame

Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Rear shock

Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

Medium compression, medium rebound, air volume spacer 0.4

Fork

Fox 36 29 Float GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset

Acros custom for 1-1/2" head tube, angular contact bearings40x52x7, Internal cable routing

Stem

Onoff Krypton FG 30mm, CNC, 31.8mm barbore

Handlebar

Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

Onoff Desert, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

Saddle

Fizik Terra Aidon Slim X5

Front brake

Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake

Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram G2 R, tool-free reach adjust, lever pivot bushings

Rims

Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes

Mavic J-bend double butted, contactless lacing


Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub

Front tyre

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tyre

Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Crankset

E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm

Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Chain

Sram NX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger NX Eagle, 12s, X-Actuation 1:1

Cassette

Sram PG-1230, 11-50T, 12s

Derailleur hanger

Sram UDH

Others

Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh

Weight

18,9 kg

Display

TQ HPR display V01

Motor

TQ HPR-50

Battery

TQ HPR-50 360Wh integrated and removable
