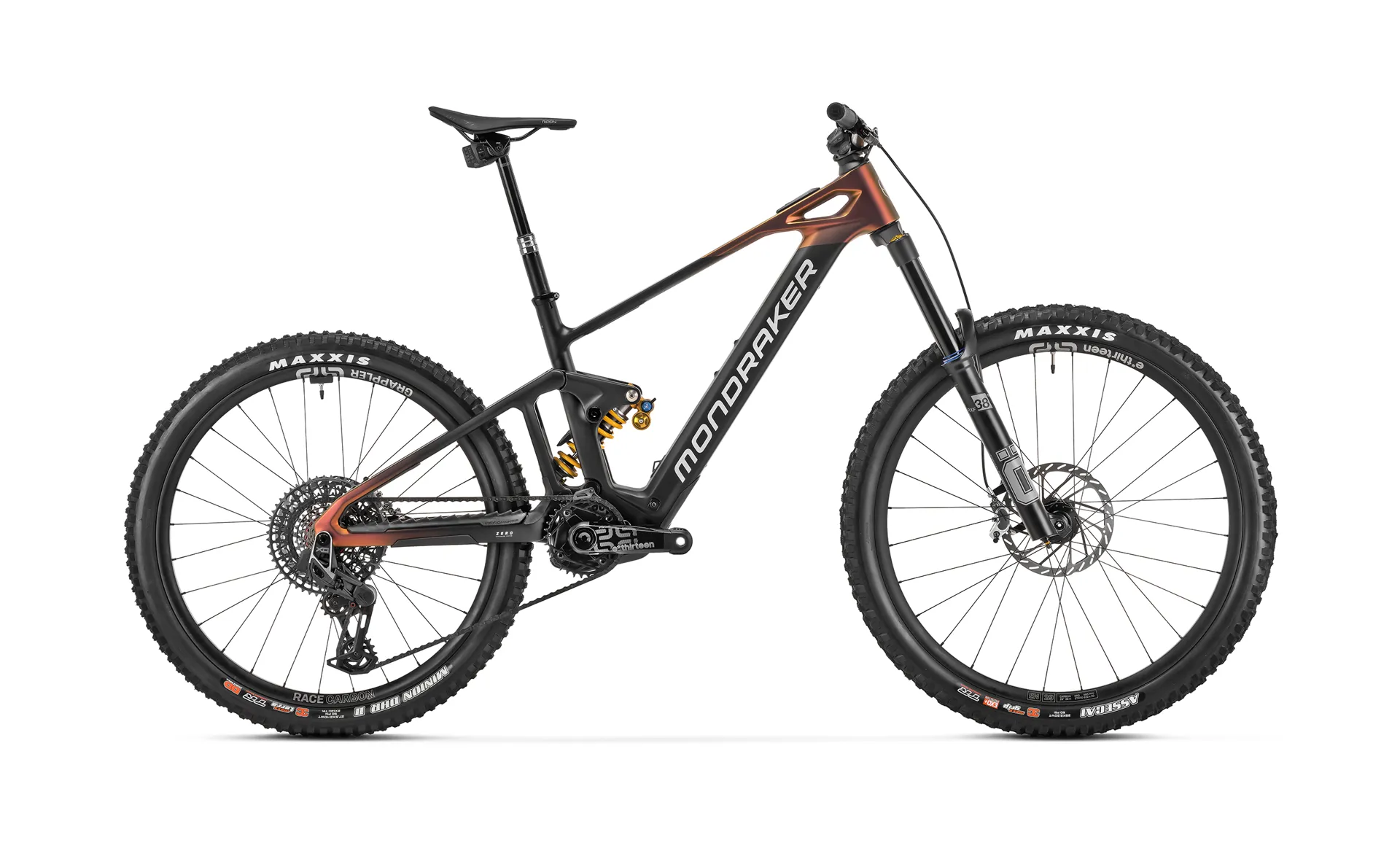

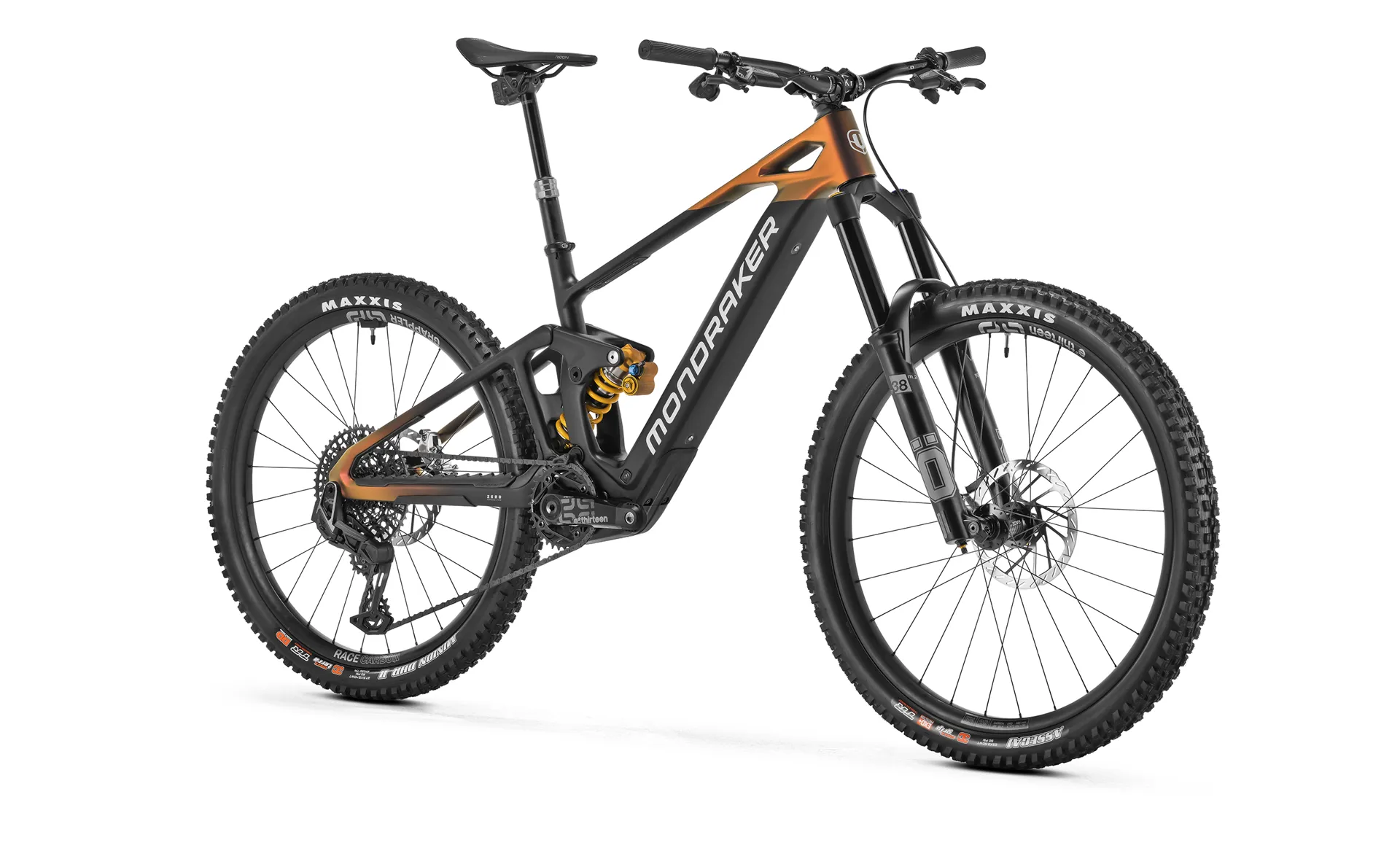

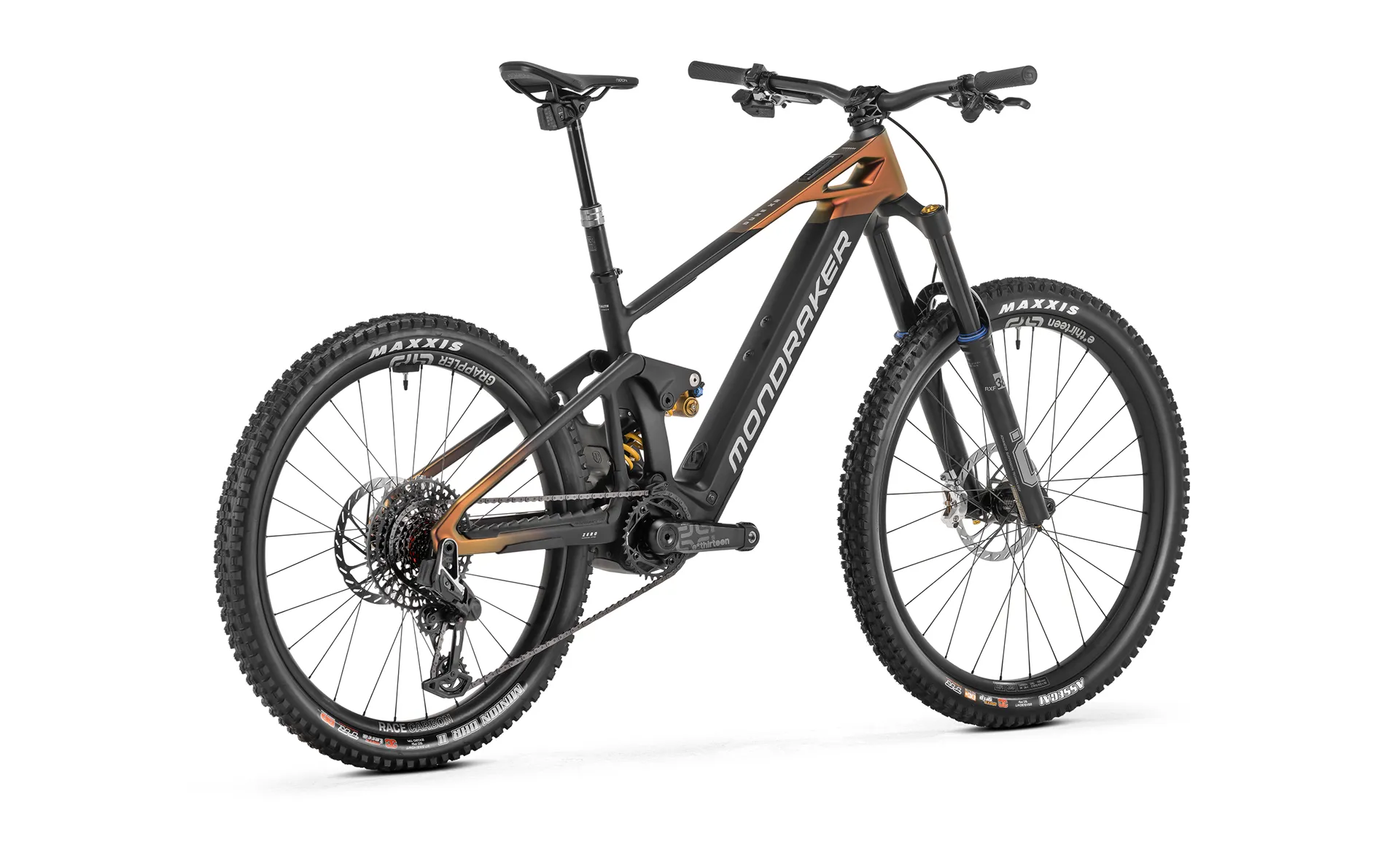

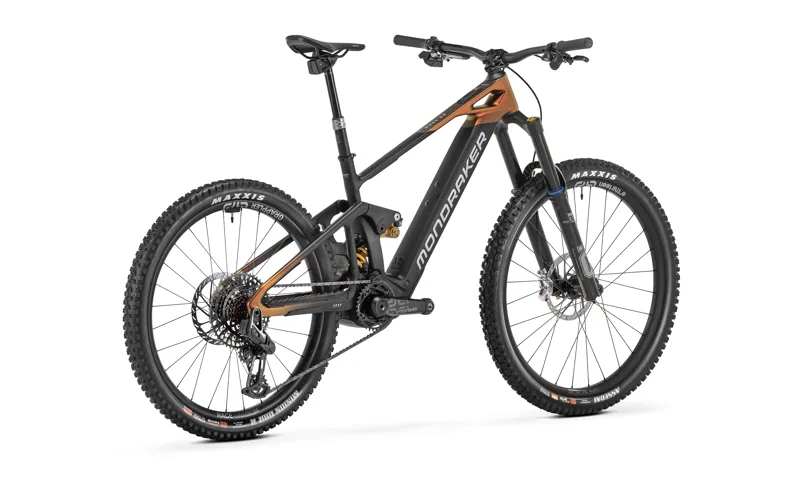

Mondraker Dune XR Mars 2025

Season:2025

Brand:Mondraker

Code:010.2526

The Mondraker Dune XR 2025 is an advanced electric mountain bike designed for enduro riding. With a stealth carbon frame and a powerful Bosch SX motor, this bike offers 170mm of front travel and 165mm of rear travel. Its lightweight and high-quality build kit make it a top choice for riders seeking thrill and performance.

The Mondraker Dune XR 2025 boasts a meticulously designed frame intended to excel on difficult terrain, serving as a well-rounded bike that excels in both technical descents and fast, curving trails. With a riding position optimized for optimum performance on climbs and extended pedaling sections, it remains engaging and playful throughout.

It’s Mondraker's only build with a 180mm fork and coil shock. It’s got a 180mm Öhlins RXF 38 M.2 29 fork, Öhlins TTX22M.2 205x65mm shock, SRAM X0 Eagle AXS transmission with T-Type rear mech, E.13 TRS Race carbon cranks, SRAM Code Ultimate Stealth brakes, RockShox Reverb Stealth AXS seatpost and e*thirteen Grappler Race Carbon wheels.

SIZING -

  • S: 160cm - 170cm
  • M: 165cm - 180cm
  • L: 175cm - 185cm
  • XL: 185cm - 190cm+
Technical Information

Detailed description

  • Frame

    Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

    Rear shock

    Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

    Shock settings

    C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs

    Fork

    Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

    Headset

    Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

    Stem

    Onoff S9 30mm 0º, Full CNC, 31.8mm barbore

    Handlebar

    Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

    Grips

    Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

    Seatpost

    RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm

    Saddle

    Fizik Terra Aidon Slim X5

    Front brake

    Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Rear brake

    Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Brake lever

    Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

    Rims

    e*thirteen Grappler Carbon, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes, 29 front, 27''''5 rear

  • Spokes

    e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

    Front hub

    e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

    Rear hub

    e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub

    Front tire

    Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

    Rear tire

    Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

    Crankset

    e*Thirteen TRS Race carbon ebike, All sizes: 160mm

    Rings

    Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55

    Chain

    Sram X0 Eagle T-Type, 12s, Powerlock

    Rear derrailleur

    Sram X0 Eagle AXS T-Type,12s

    Shift levers

    Sram Eagle AXS Pod MMX, 12s

    Casette

    Sram XS-1295, 10-52T, T-Type, 12s

    Weight

    19,5 kg

    Display

    Purion 400 / Bosch Mini Remote / Bosch System Controller

    Motor

    Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide

    Battery

    Bosch Compact Powertube 400Wh
