Mondraker

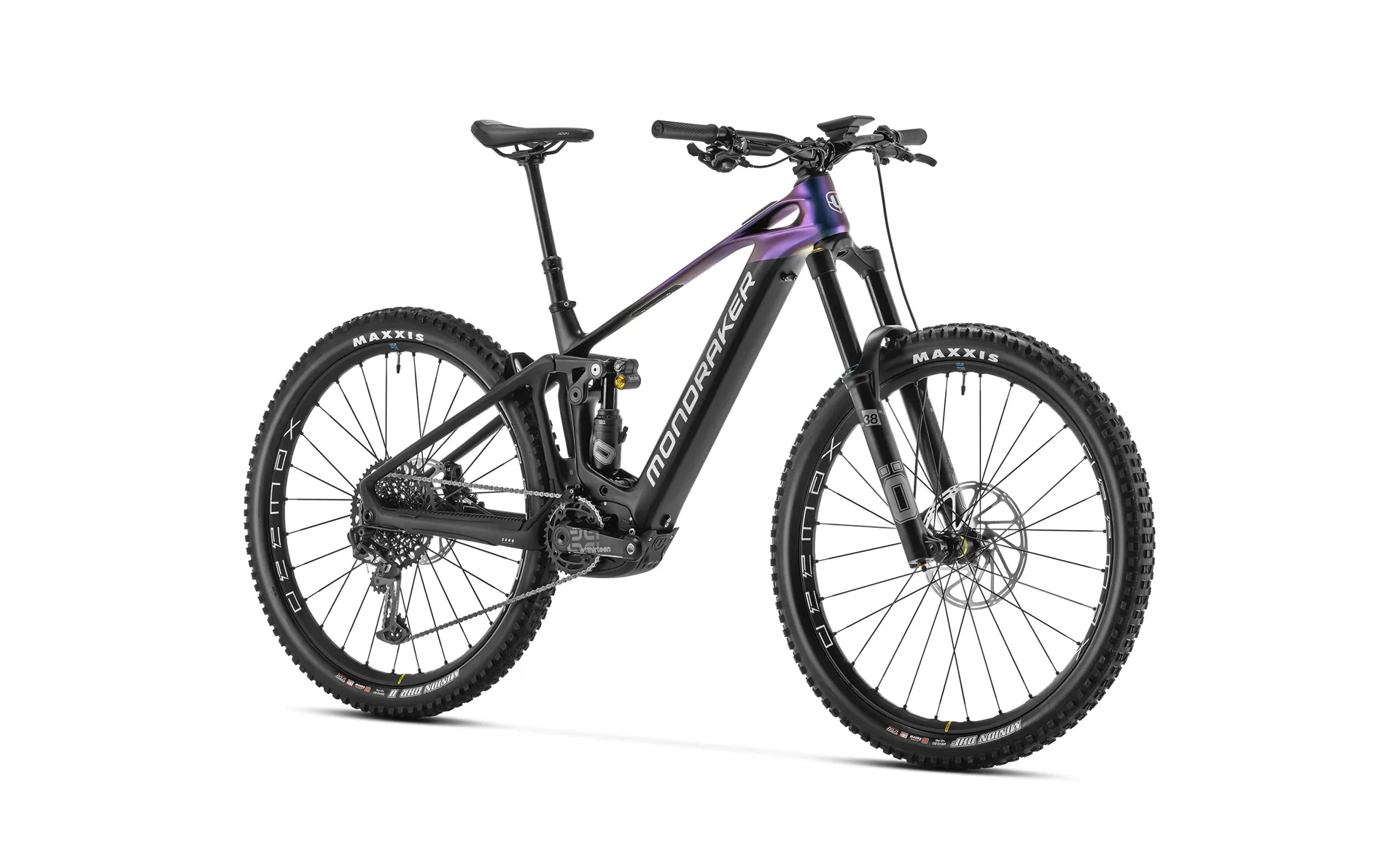

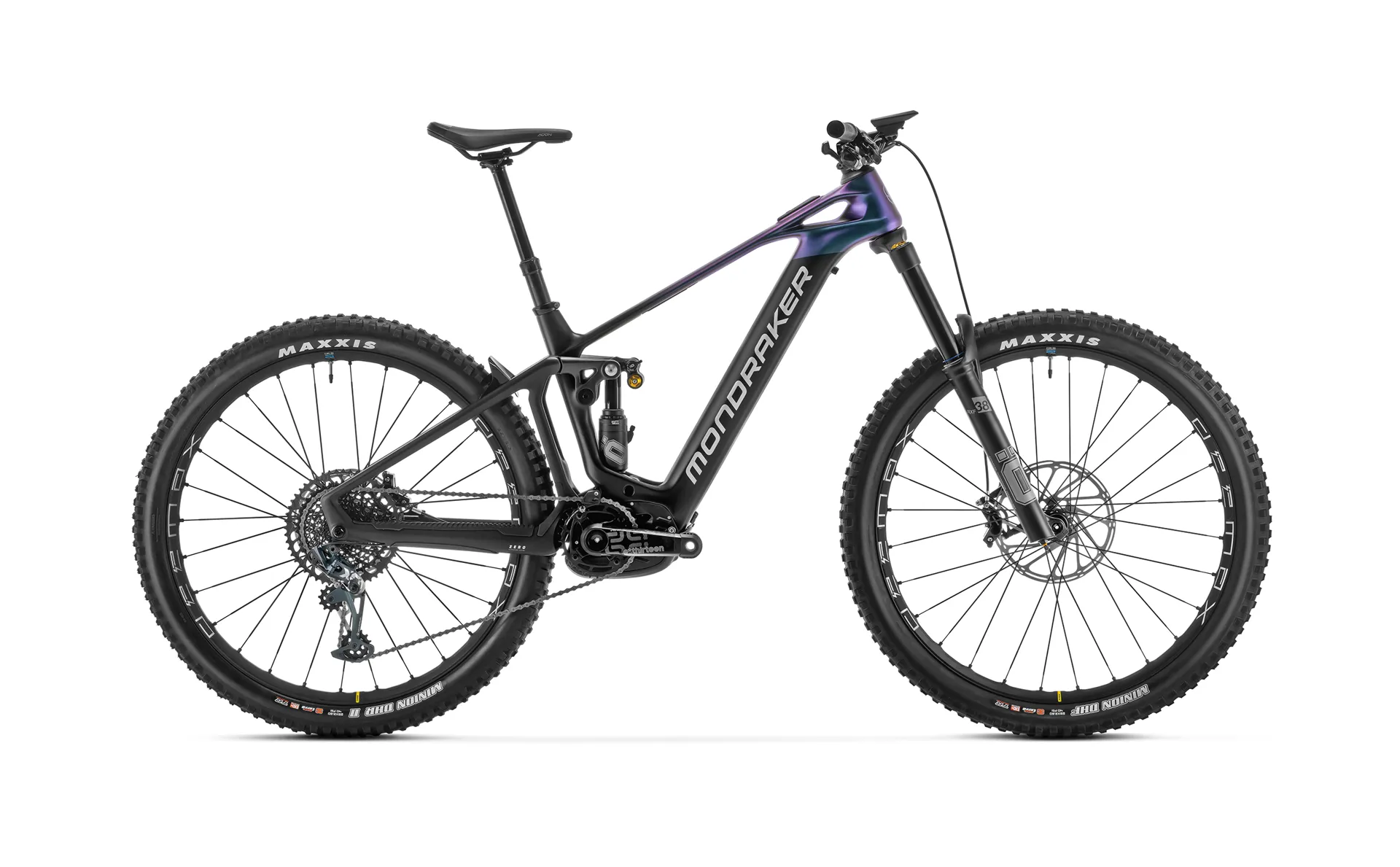

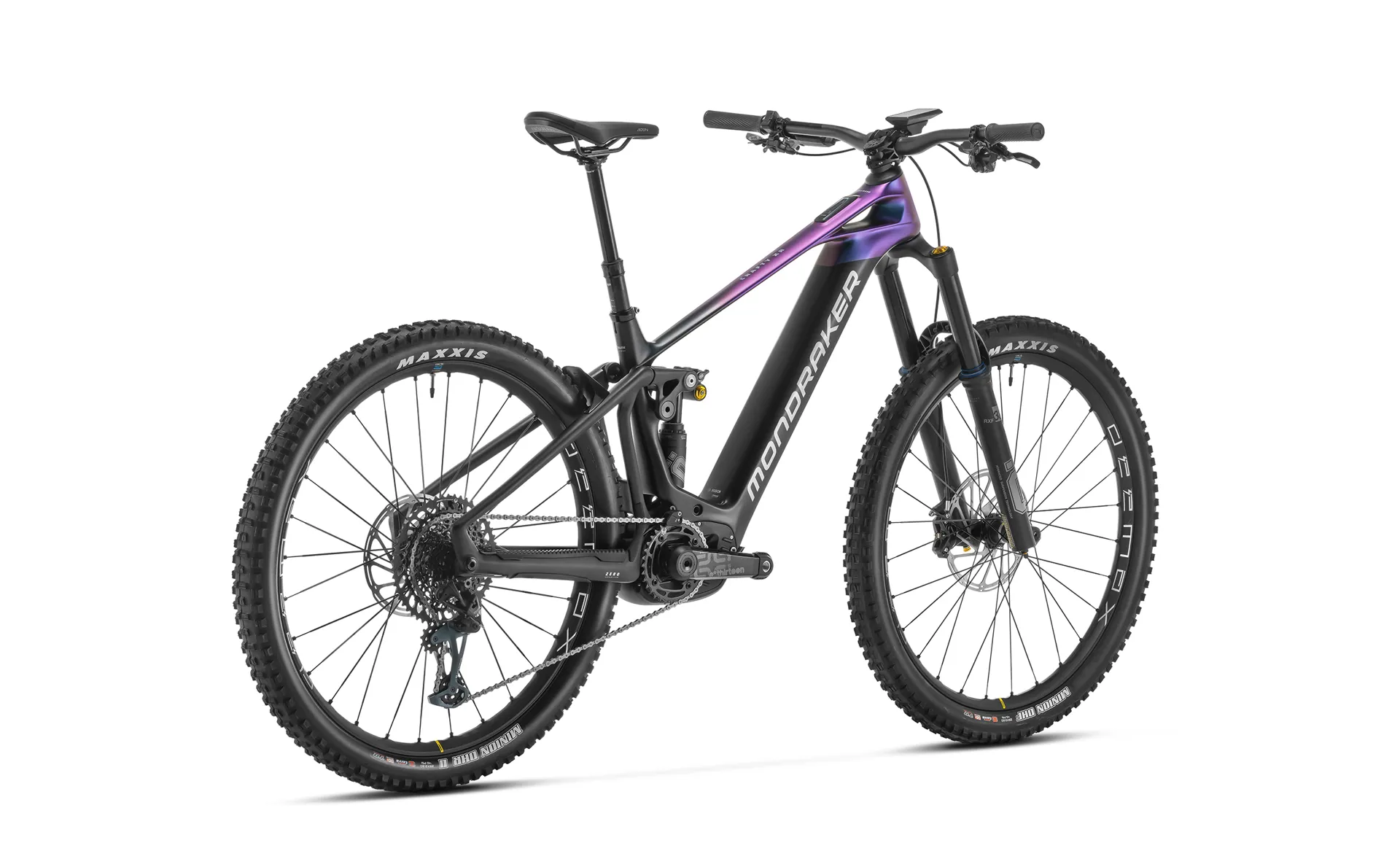

Mondraker CRAFTY CARBON XR Polaris Ed2

£6,895.00 £9,999.00 31% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Mondraker CRAFTY CARBON XR Polaris Ed2

Season:2024

Brand:Mondraker

Code:010.2443BLKP

Product information

  • Nature:BIKES / E-BIKES
  • Range:CRAFTY
  • Discipline:ENDURO/AM, e-MTB ALL MOUNTAIN

Detailed description

  • Frame

    Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

    Rear shock

    Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

    Shock settings

    C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)

    Fork

    Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

    Headset

    Acros custom for 1-1/2" head tube, angular contact bearings40x52x7, Internal cable routing

    Stem

    Onoff Krypton FG 30mm, CNC, 31.8mm barbore

    Handlebar

    Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

    Grips

    Onoff Desert, 1lock-on, 135mm

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

    Saddle

    FIZIK Terra Aidon X5 145mm

    Front brake

    Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Rear brake

    Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Brake lever

    Sram Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

    Rims

    Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes

    Spokes

    Mavic straight-pull double butted, contactless lacing

  • Front hub

    Mavic, Boost 15x110mm, IS 6 bolts

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub

    Front tire

    Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    Rear tire

    Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    Crankset

    E.13 TRS Race carbon ebike, 165mm

    Rings

    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

    Chain

    Sram NX Eagle, 12s, Powerlock

    Rear derrailleur

    Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

    Shift levers

    Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click

    Casette

    Sram XG-1275, 10-52T, 12s

    Derailleur hanger

    Sram UDH

    Weight

    23,4 kg

    Display

    Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller

    Motor

    Bosch Performance Line CX-Race (25 km/h) Smart System

    Battery

    Bosch Powertube 750Wh
