The All New Mondraker Crafty Carbon RR S 2025 electric mountain bike- with a full carbon frame, fitted with the latest Bosch motor, forward geometry, zero suspension system, Sram wireless electric gears, this is a stand out E bike- Midlands MTB.
The All New Mondraker Crafty Carbon RR S 2025 electric mountain bike- with a full carbon frame, fitted with the latest Bosch motor, forward geometry, zero suspension system, Sram wireless electric gears, this is a stand out E bike- Midlands MTB.
Mondraker

Mondraker CRAFTY CARBON RR S Black 2025

£8,499.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

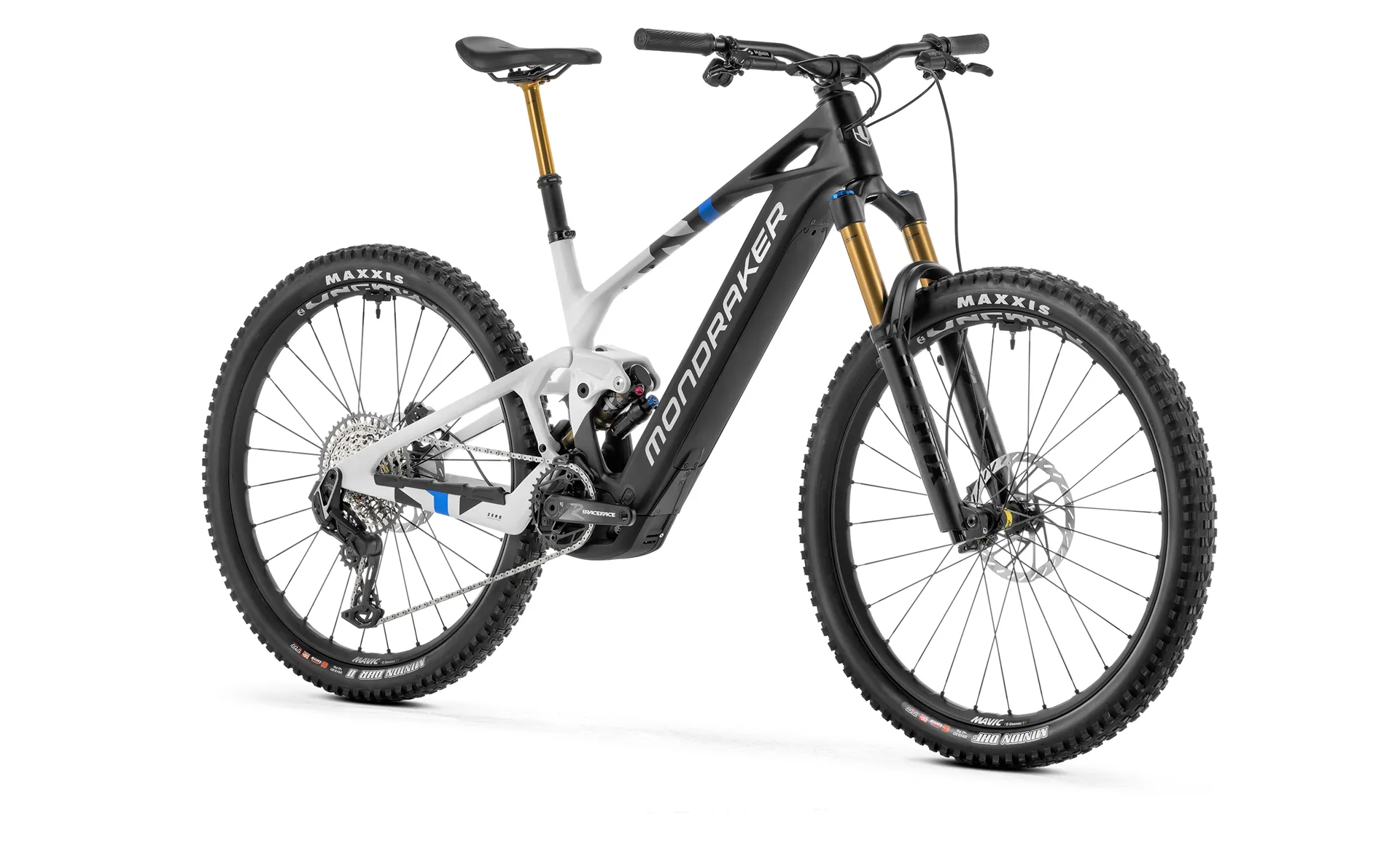

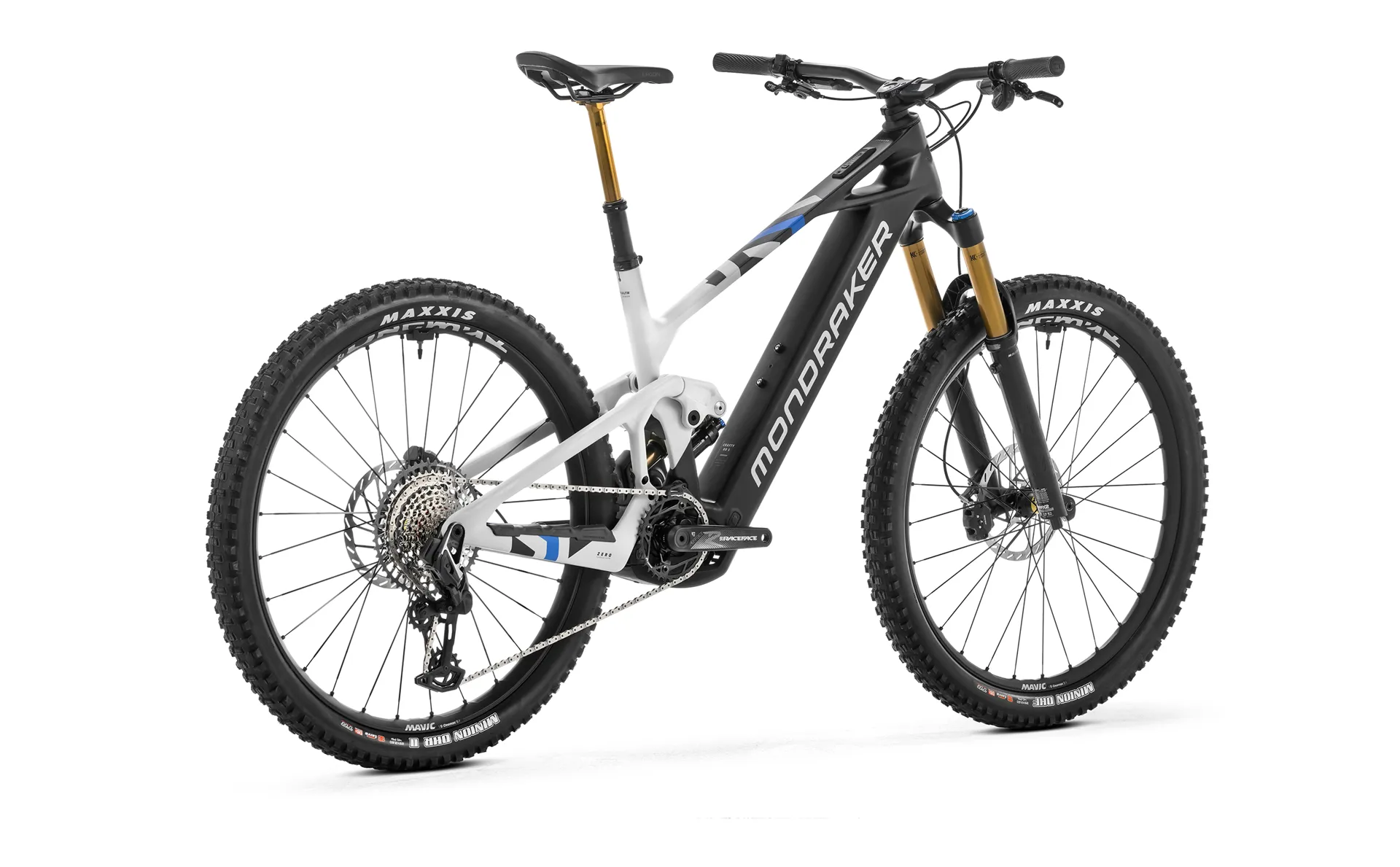

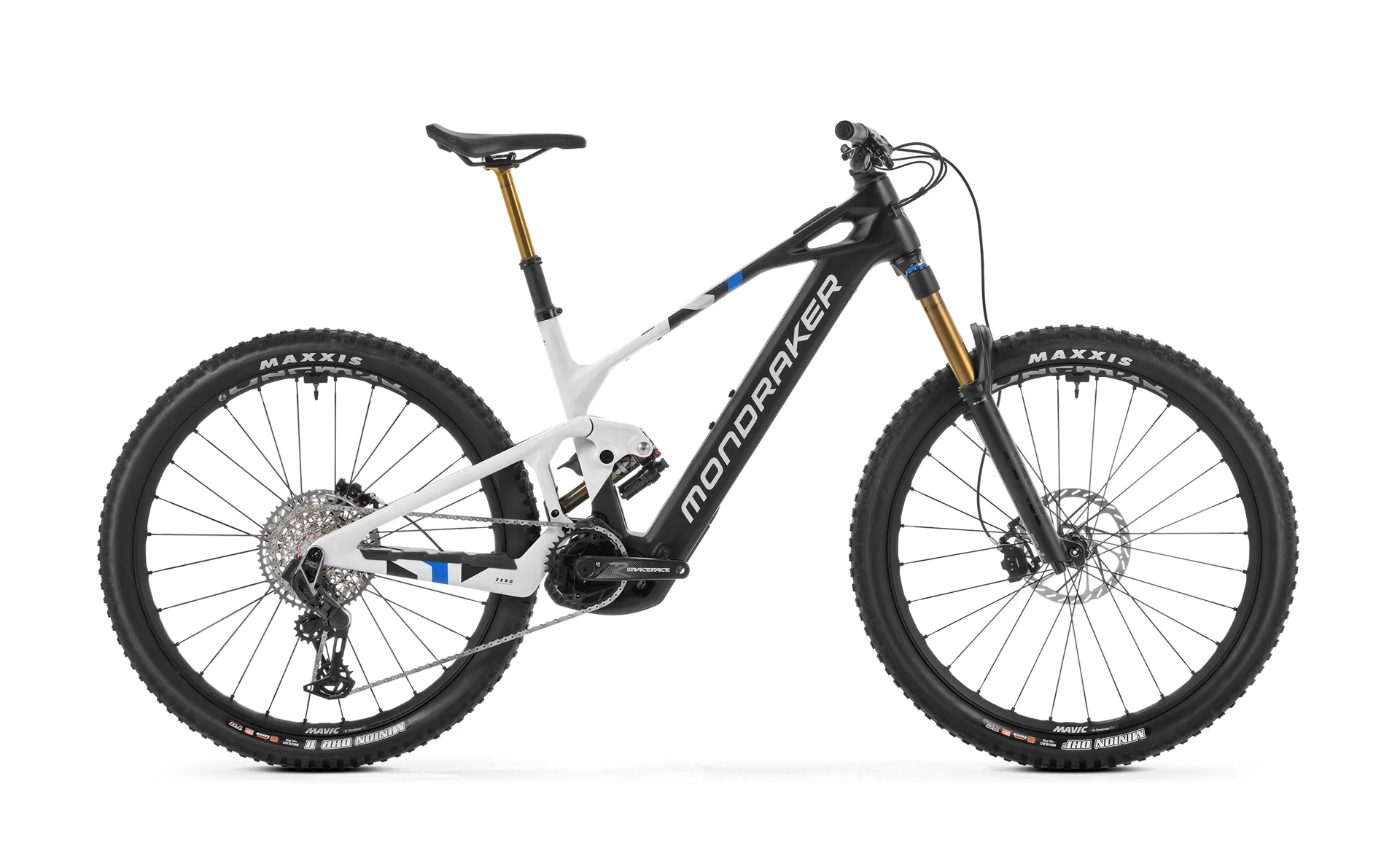

Mondraker CRAFTY CARBON RR S Black 2025

Season:2025

Brand:Mondraker

Code:010.253BKBLW

The Crafty Carbon RR S is the first model in the lineup to feature a full carbon fiber frame of the Mondraker e bike, rear triangle, and rocker link. It includes a compact, lightweight 600Wh battery, striking the ideal balance between weight, power, and performance. The bike is equipped with SRAM’s X0 AXS Eagle drivetrain, Maven Silver brakes, and Fox suspension both front and rear, all featuring Kashima coating, along with a Transfer dropper seatpost. Completing the package are ONOFF components’ S6 range, highlighted by an 800mm wide carbon fiber handlebar. Plus, the RR S is compatible with Bosch's Powermore range extender.

Full Bike Specification

Frame

The Mondraker e-bike Crafty Stealth Air full carbon delivers top-tier performance with an updated Zero Suspension System, 150mm travel, forward geometry, an internal removable battery, a Boost 12x148mm rear axle, a tapered head tube, a one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, and exclusive plastic motor covers.

Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock

Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer

Fork

Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar

Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost

Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm

Saddle

Ergon SM-10

Front brake

Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake

Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust

Rims

Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes

Spokes

Mavic straight-pull double butted, contactless lacing

Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub

Front tire

Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Crankset

Race Face Aeffect-R ebike, 160mm

Rings

Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55

Chain

Sram GX Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram X0 Eagle AXS, T-Type, 12s

Shift levers

Sram Eagle AXS Pod MMX, 12s

Casette

Sram XS-1295, 10-52T, T-Type, 12s

Weight

22,6 kg

Display

Purion 400 / Bosch Mini Remote / Bosch System Controller

Motor

New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)

Battery

Bosch Powertube 600Wh
