The all new Mondraker Crafty Carbon R, 2025, Mondraker introduces a new Crafty Carbon R, taking everything that made the Crafty great and elevating it to new heights, Mondraker's Zero Suspension system gives a well supported ride.
The all new Mondraker Crafty Carbon R, 2025, Mondraker introduces a new Crafty Carbon R, taking everything that made the Crafty great and elevating it to new heights, Mondraker's Zero Suspension system gives a well supported ride.
Mondraker

Mondraker CRAFTY CARBON R Black 2025

£6,299.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

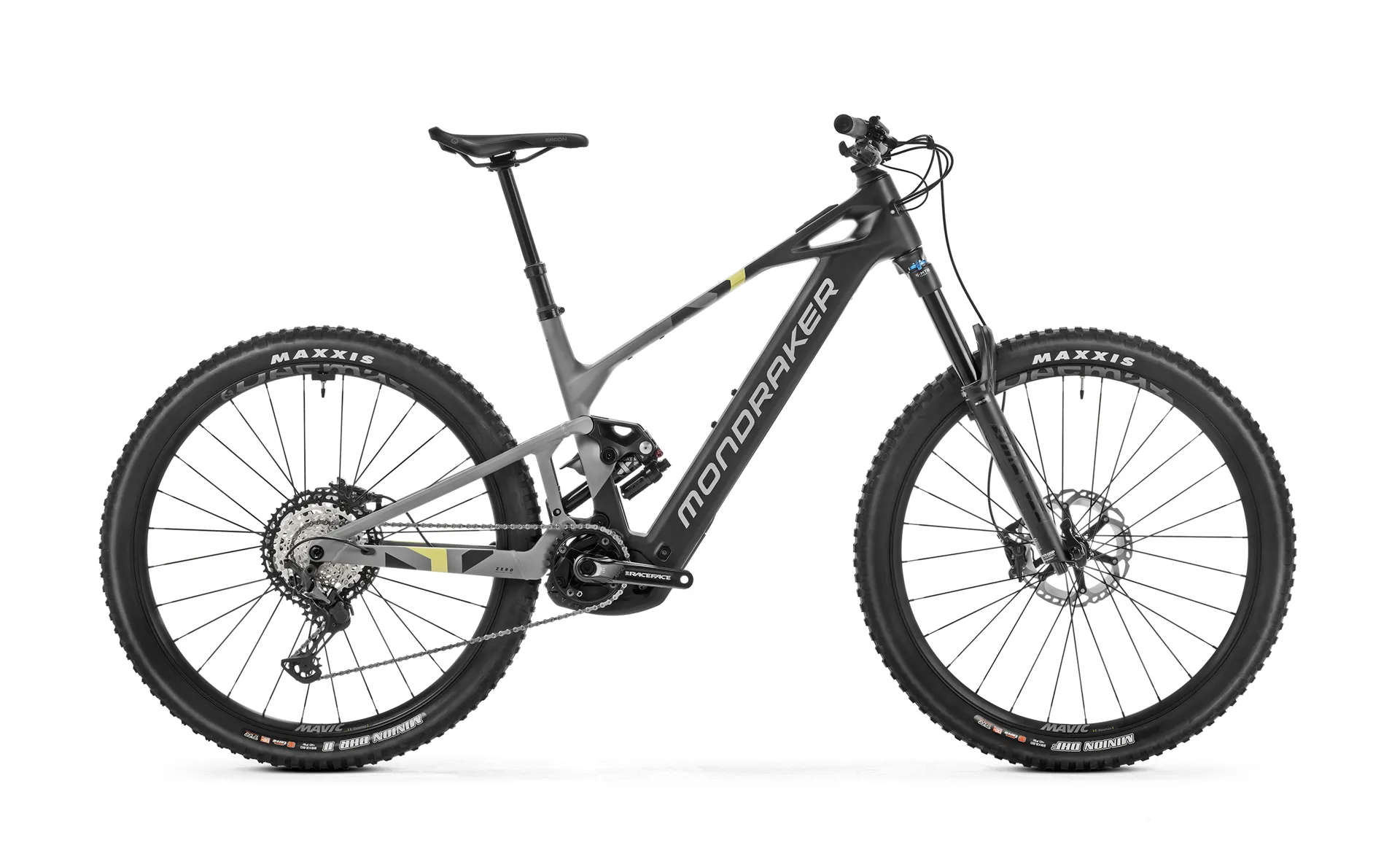

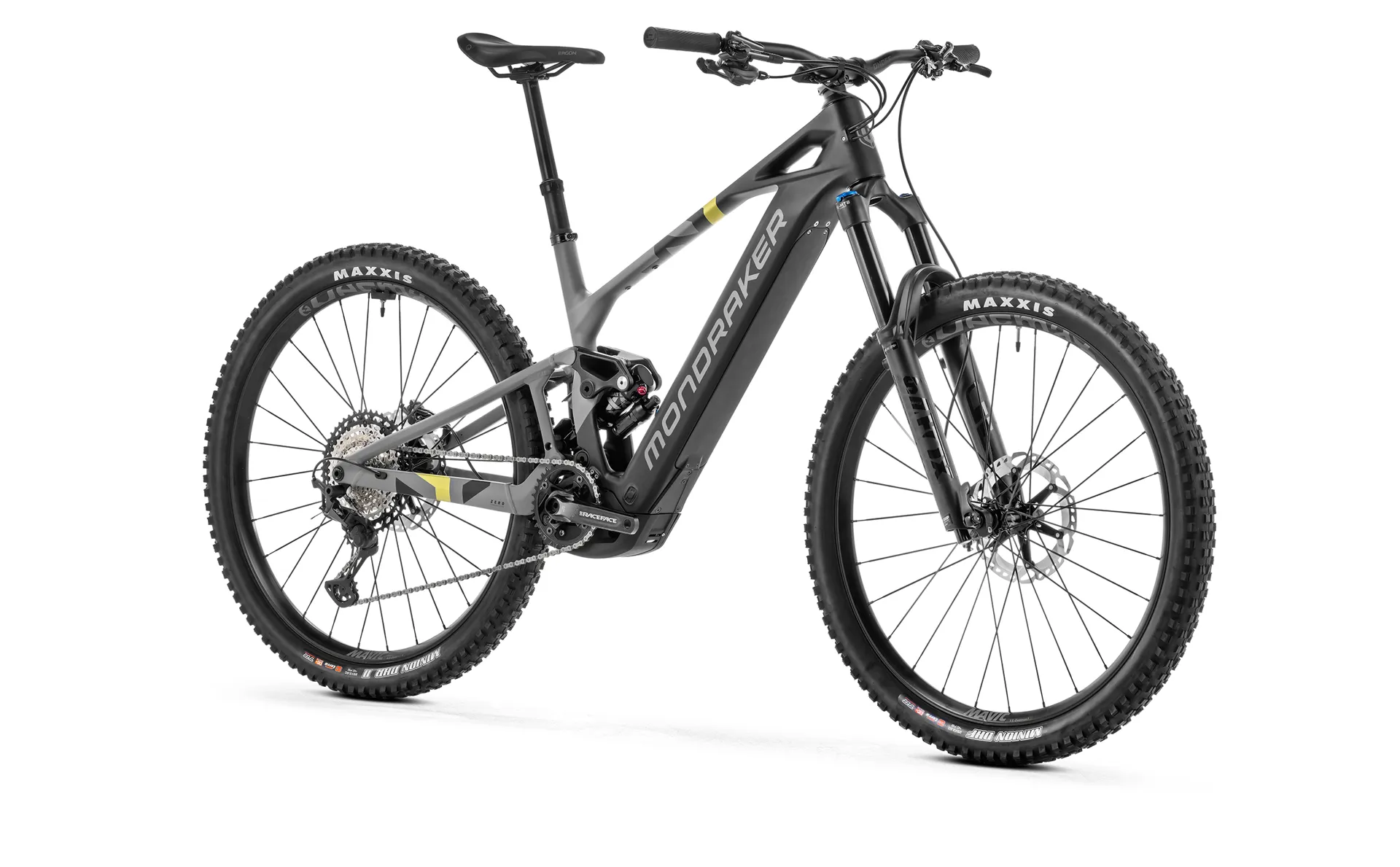

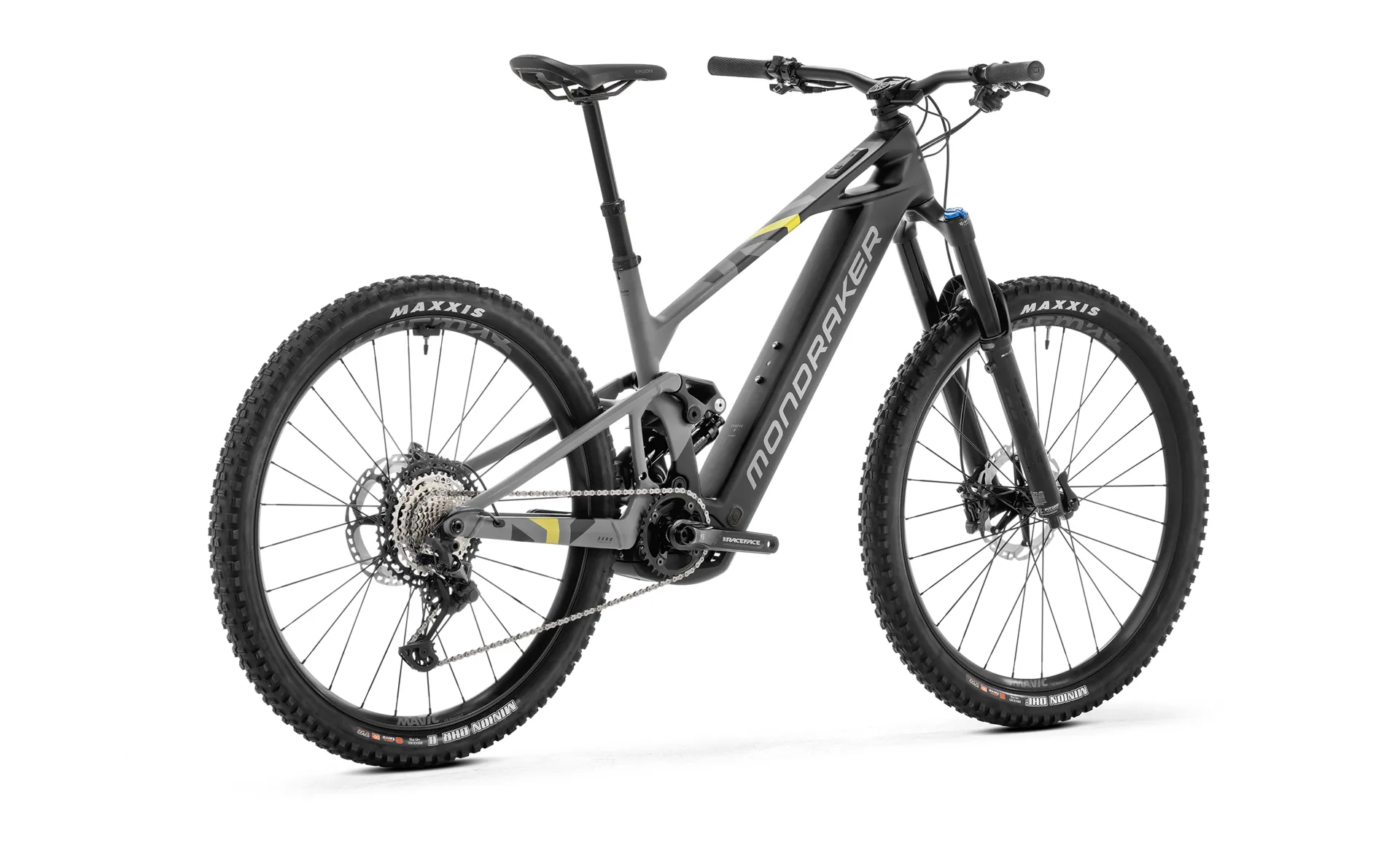

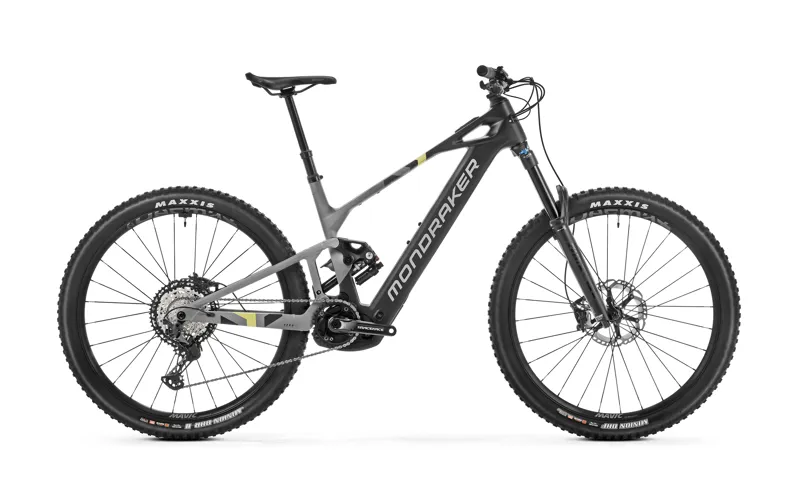

Mondraker CRAFTY CARBON R Black 2025

Season:2025

Brand:Mondraker

Code:010.253BK

Mondraker E bike Crafty Carbon R is your ticket to ride Mondraker’s best range of e bikes ever. The Bosch CX motor, the heart of the machine, is combined with Bosch’s fully removable 800Wh battery (accessible via a cover on the underside of the downtube). This is the only build with a Shimano XT M8100 groupset, including XT four piston brakes, XT 12 speed rear mech and 10-51 cassette. Available in two colourways: Bunker Grey / Fog Grey / Flame Red, and Black / Nimbus Grey / Tonic Gold.

Full E Bike Specification

Frame

Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock

Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer

Fork

Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips

Onoff Forest, CNC lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

Saddle

Ergon SM-10

Front brake

Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

Rear brake

Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

Brake lever

Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust

Rims

Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes

Mavic J-bend double butted, contactless lacing

Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub

Front tire

Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Crankset

Race Face Aeffect-R ebike, 160mm

Rings

Race Face, 34T, steel, direct mount

Chain

Shimano XT M8100, 12s

Rear derrailleur

Shimano XT M8100, SGS, Shadow+

Shift levers

Shimano XT M8100, Rapid Fire Plus, 12s

Casette

Shimano XT M8100 10-51T Hyperglide+, 12s

Derailleur hanger

Sram UDH

Weight

23,9 kg

Display

Purion 400 / Bosch Mini Remote / Bosch System Controller

Motor

New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)

Battery

Bosch Powertube 800Wh
