The new F-Trick full suspension rangehas so many things in common with the high-end adult models thatit is very difficult for us to call it the children's range. Forward Geometry, Updated Zero Suspension System, 120 and 130mm travel, dropper post, 12x148 axles, 30mm stems, 4-piston brakes and 2.4" tires. Phew, saying it often takes our breath away...
The new F-Trick full suspension rangehas so many things in common with the high-end adult models thatit is very difficult for us to call it the children's range. Forward Geometry, Updated Zero Suspension System, 120 and 130mm travel, dropper post, 12x148 axles, 30mm stems, 4-piston brakes and 2.4" tires. Phew, saying it often takes our breath away...
Mondraker

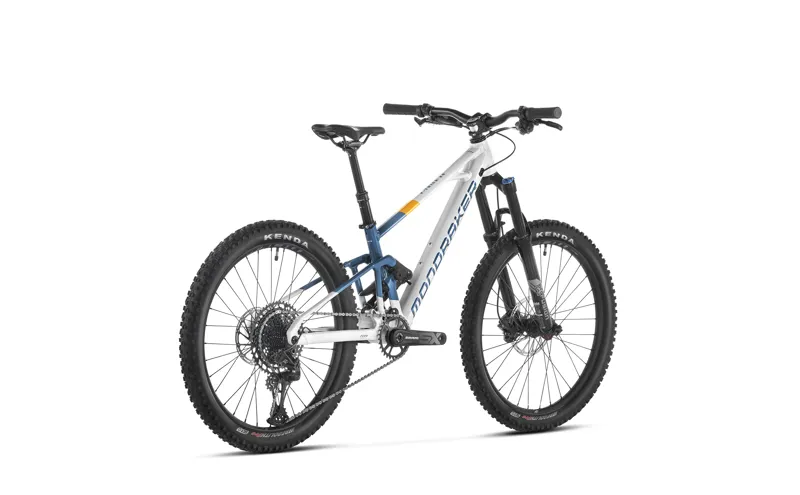

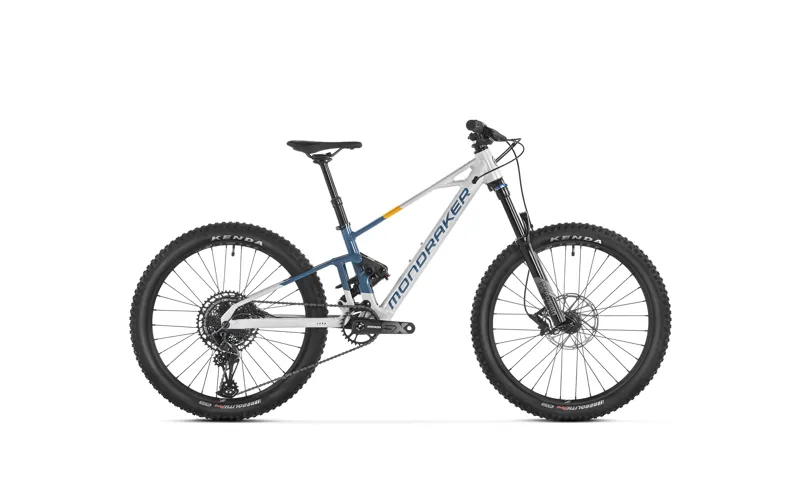

Mondraker F-TRICK 24 Bunker Grey

£2,299.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Mondraker F-TRICK 24 Bunker Grey

Season:2024

Brand:Mondraker

Code:010.24229

COMPONENTS

TECHNICAL SPECIFICATIONS

  • picture


    F-Trick 24 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 120mm travel, bolt-on one-piece upper linkage, 12x148mm rear axle, 73mm BSA bottom bracket, HHG internal cable routing, designed for single chainring cranks. Compatible with 26" wheels.

    Sizes

    Sizes

    One size fits all: 300mm

  • shock absorber

    Shock absorber

    X-Fusion 02PRO R, 165x42.5mm. Settings: low-speed rebound, air preload. Trunnion upper anchor, 50x8mm lower bushings.

    Shock Absorber Adjustment

    Shock Absorber Adjustment

    A-Tune, light compression

  • fork

    Fork

    X-Fusion Velvet RL 26, 120mm, air spring, tapered head tube, 15x100mm axle, 32mm aluminum bars, 41mm offset. Settings: lock, rebound, air preload.

    address

    Address

    ONOFF Saturn profiled for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41x30,2x7x45ºx45º, bottom 51,9x40x8x45ºx45º

  • power

    Power

    ONOFF Sulfur FG 30mm 0º, forged alloy 6061, diameter 31.8mm

    handlebar

    Handlebar

    MDK XC 1.0, Alloy 6061, Rise: 25mm, Width: 680mm, Rear Sweep: 9th, Up Sweep: 5th, 31.8mm Diameter

  • Fists

    Fists

    ONOFF Twin, 1 lock-on

    Seatpost

    Seatpost

    ONOFF Internal wiring shaft, diameter 31.6x100mm

  • Saddle

    Saddle

    SDG Fly JR

    Front brake

    Front brake

    SRAM Level, 2-piece caliper, 6-bolt IS 180mm one-piece Centerline rotor, organic sheet steel pads.

  • Rear brake

    Rear brake

    SRAM Level, 2-piece caliper, 6-bolt IS 160mm one-piece Centerline rotor, organic sheet steel pads.

    Brake levers

    Brake levers

    SRAM Level, reach adjustment with tools, lever axle with bushings

  • Tires

    Tires

    MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32h

    Radios

    Radios

    CN, round, stainless steel

  • Front Hub

    Front Hub

    DA210FS02, 15x100mm, cup and cone bearings, 6-bolt IS

    Rear Hub

    Rear Hub

    DA207R, 12x148mm, cup and cone bearings, 6-bolt IS, HG freehub

  • Front Tire

    Front Tire

    Kenda Regolith, 24x2.4; 120TPI, foldable TLR

    Rear Tire

    Rear Tire

    Kenda Regolith, 24x2.4; 120TPI, foldable TLR

  • Connecting rods

    Connecting rods

    SRAM SX Eagle, DUB axle, Direct Mount chainring, 155mm

    Dishes

    Dishes

    30 teeth, steel, X-SYNC

  • bottom bracket

    Bottom bracket

    SRAM DUB BSA, sealed bearings, 73mm

    Pedals

    Pedals

    SDG Slater JR

  • chain

    Chain

    SRAM SX Eagle, 12v, Powerlock

    Rear Shift

    Rear derailleur

    SRAM SX Eagle, Type 3 Roller Bearing Clutch, Gearbox Lock, Long Case, 1x12v, X-ACTUATION 1:1

  • Controls - Shift Buttons

    Controls - shift buttons

    SRAM Trigger SX Eagle, 12v, X-Actuation 1:1

    Pine nuts

    Pine nuts

    SRAM PG-1230 11-50t, 12v

  • Derailleur hanger

    Derailleur hanger

    UDH

    Weight without pedals

    Weight without pedals

    13.6 kg
