Ultracompact, light and smart system that creates a full range of new riding possibilities while making eBikes look & feel indistinguishable from high performance bikes. The latest innovations create the best support at any cadence, whether racing at top speeds or climbing up a mountain. X20 is designed to drive the rider and the whole industry forward.

Mondraker

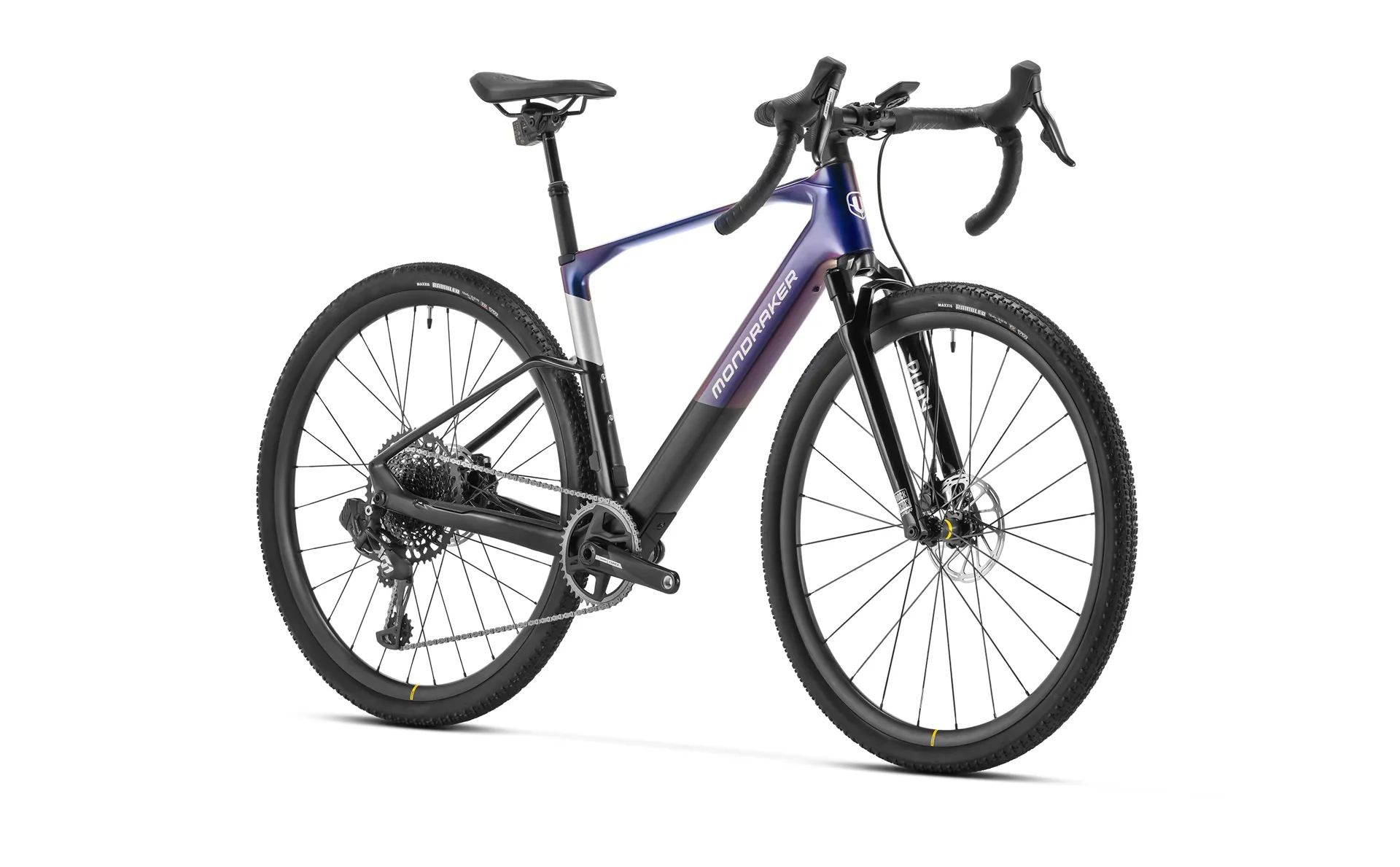

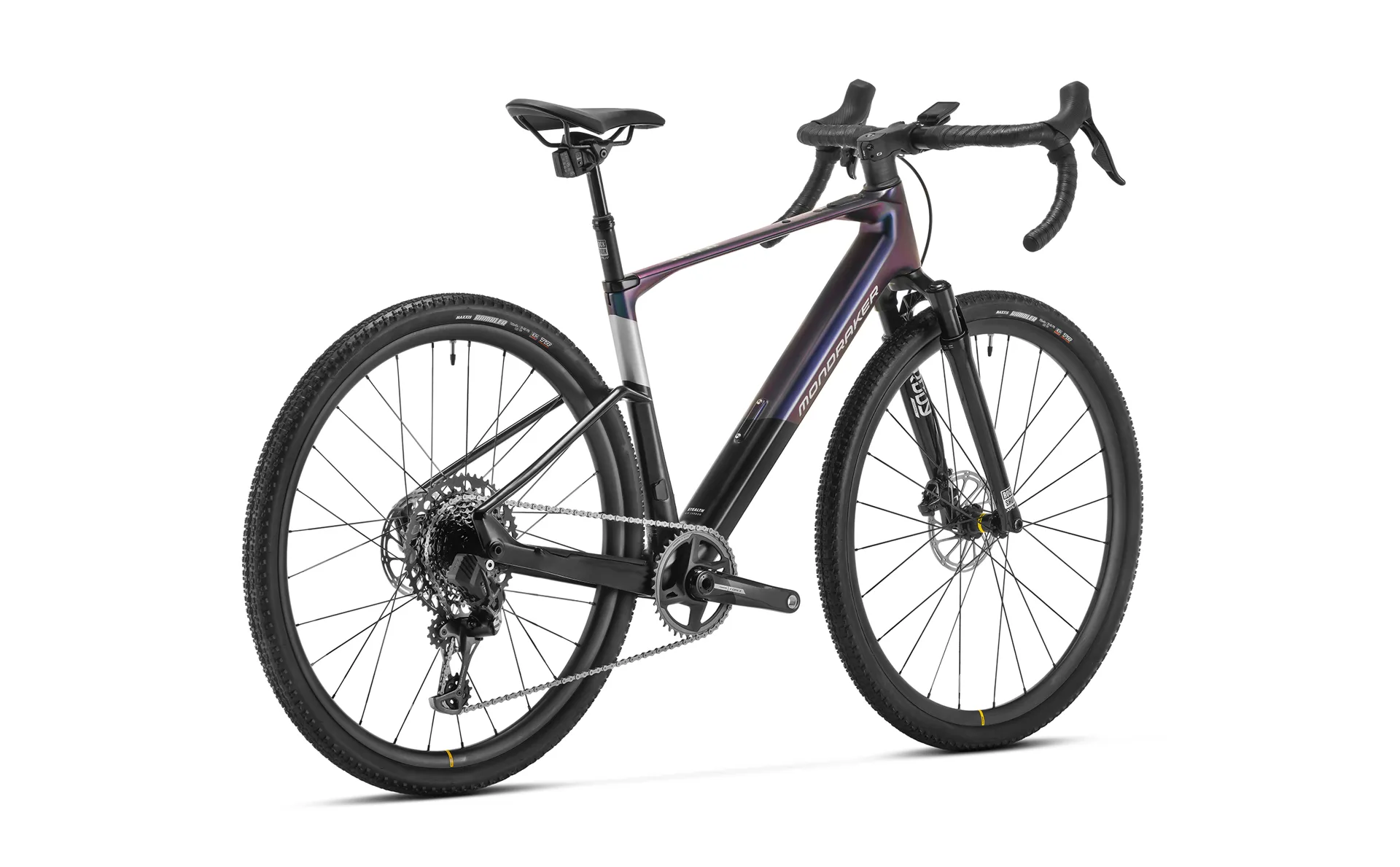

Mondraker DUSTY XR ED2 Polaris

£7,999.00

Size Guide

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Our customers love us

Don't take our word for it, check out some of the great reviews our customers have left us & if you've had a great experience with us, why not let us — and our customers — know about it.

Mondraker DUSTY XR ED2 Polaris

Brand:Mondraker

Code:010.2448P

COMPONENTS

TECHNICAL SPECS

Frame
e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
Sizes
S: 440mm / M: 460mm / L: 500mm / XL: 530mm
Fork
RockShox Rudy Ultimate, 40mm travel, 12x100mm maxle stealth, 45mm offset
Headset
OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm
Handlebar
OnOff gravel 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm
Grips
Barium gravel dark grey
Seatpost
RockShox Reverb XPLR AXS 75mm wireless 27.2X400mm dropper post
Saddle
FIZIK Terra Argo X7 150mm
Front brake
SRAM Force Etap AXS 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake
Sram Force Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever
Sram Force, contact point adjustment, tooled reach adjust, plastic shift lever, LFRT brake lever
Rims
Mavic Allroad Pro Carbon SL Disc, UST, 23mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
Spokes
Mavic Steel double butted flat spokes
Front hub
Mavic, 12x100mm, IS 6 bolts
Rear hub
Mahle X20 Drive Unit, XDR freehub
Front tire
Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear tire
Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset
SRAM Force 1 Carbon GLS Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm.
Rings
Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket
Mahle DUB pressfit, sealed bearings, w/ torque sensor
Chain
Sram NX Eagle, 12s, Powerlock
Rear derrailleur
Sram X01 Eagle AXS, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
Sram Force Etap AXS 12s, X-Actuation 1:1, single click
Casette
Sram XG-1275, 10-52T, 12s
Derailleur hanger
Mondraker M076
Others
Optional external battery: Mahle e185Wh
Weight
13,9 kg
Display
Pulsar One Wireless
Motor
Mahle X20 Drive Unit
Battery
Mahle X20 IX350Wh
