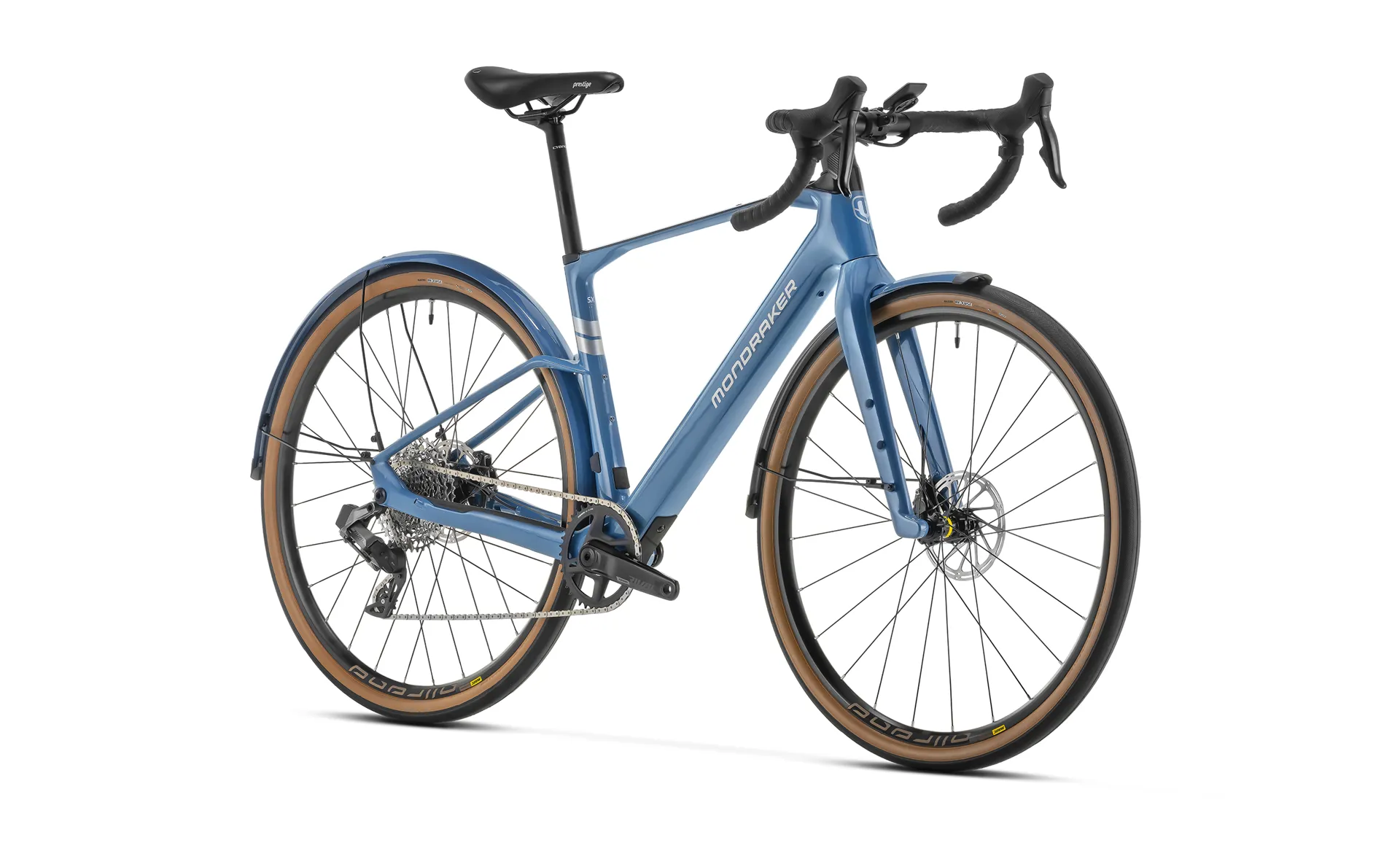

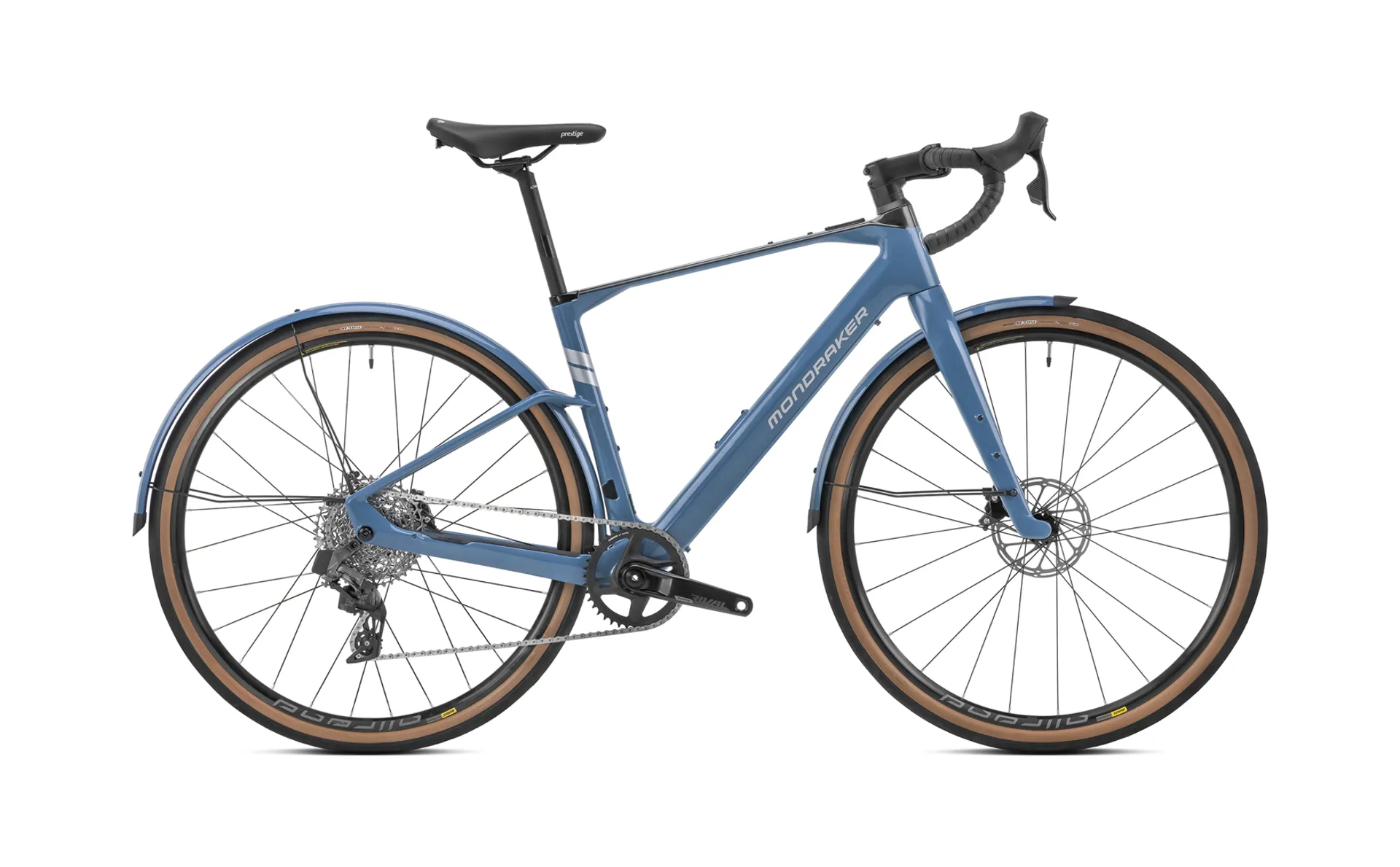

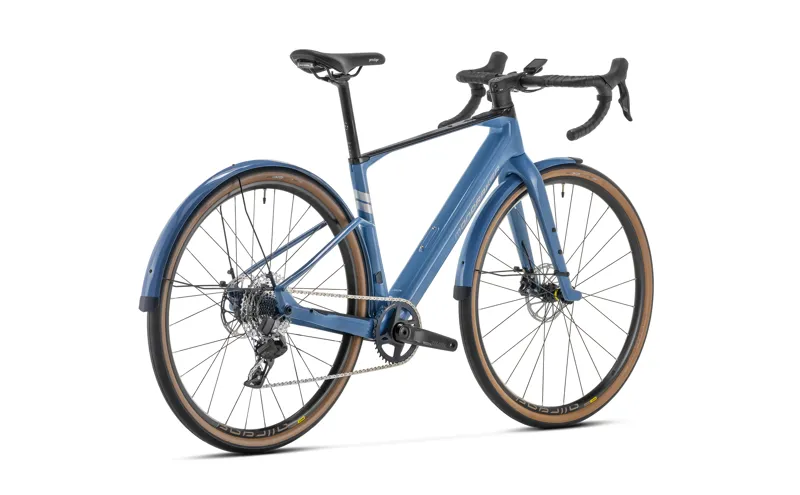

Mondraker Dusty SX RR Denim Blue

Season:2024

Brand:Mondraker

Code:010.2449DBL

Mondraker Dusty SX RR

E-GRAVEL | MOTOR MAHLE X20 | STEALTH AIR CARBON

The rapid evolution of gravel bikes over the last few years hasn’t gone unnoticed at Mondraker. The Gravel category, which has seen unstoppable growth via different disciplines and different types of users, has meant a return to their origins for many people. Origins based on fun, the ability to go further, and the pleasure of pedalling over more complicated terrain. All of this with a very marked off-road character, something which is in perfect alignment with the philosophy we here at Mondraker apply to all of our mountain bikes.

Bike specification

Frame

e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.

Sizes

S: 440mm / M: 460mm / L: 500mm / XL: 530mm

Fork

Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

Headset

OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm

Handlebar

OnOff gravel 0º bar flare. Width 440mm all sizes

Grips

Barium gravel dark grey

Seatpost

OnOff Barium gravel microadjust diameter 27.2mm, length 400mm

Saddle

Selle Royal Prestige 139mm

Front brake

SRAM Rival Etap AXS 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake

Sram Rival Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Rival, contact point adjustment, tooled reach adjust, plastic shift lever, LFRT brake lever

Rims

Mavic Allroad Disc, UST, 22mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear

Spokes

Mavic Steel double butted flat spokes

Front hub

Mavic, 12x100mm, IS 6 bolts

Rear hub

Mahle X20 Drive Unit, XDR freehub


Front tire

Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall

Rear tire

Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall

Crankset

SRAM Rival 1 GLS Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm.

Rings

Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,

Bottom bracket

Sram DUB pressfit, sealed bearings

Chain

Sram Rival, 12s, Powerlock

Rear derrailleur

Sram Rival XPLR Etap AXS 12s

Shift levers

Sram Rival Etap AXS 12s, X-Actuation 1:1, single click

Casette

Sram XG-1251 10-44T, 12s

Derailleur hanger

Mondraker M076

Others

Front and rear custom aluminum e-gravel dedicated fenders. Optional external battery:
Mahle e185Wh

Weight

13,9 kg

Display

Pulsar One Wireless

Motor

Mahle X20 Drive Unit

Battery

Mahle X20 IX350Wh
